Steering Gear
Steering Gear
Part 1 of 2
Part 2 of 2

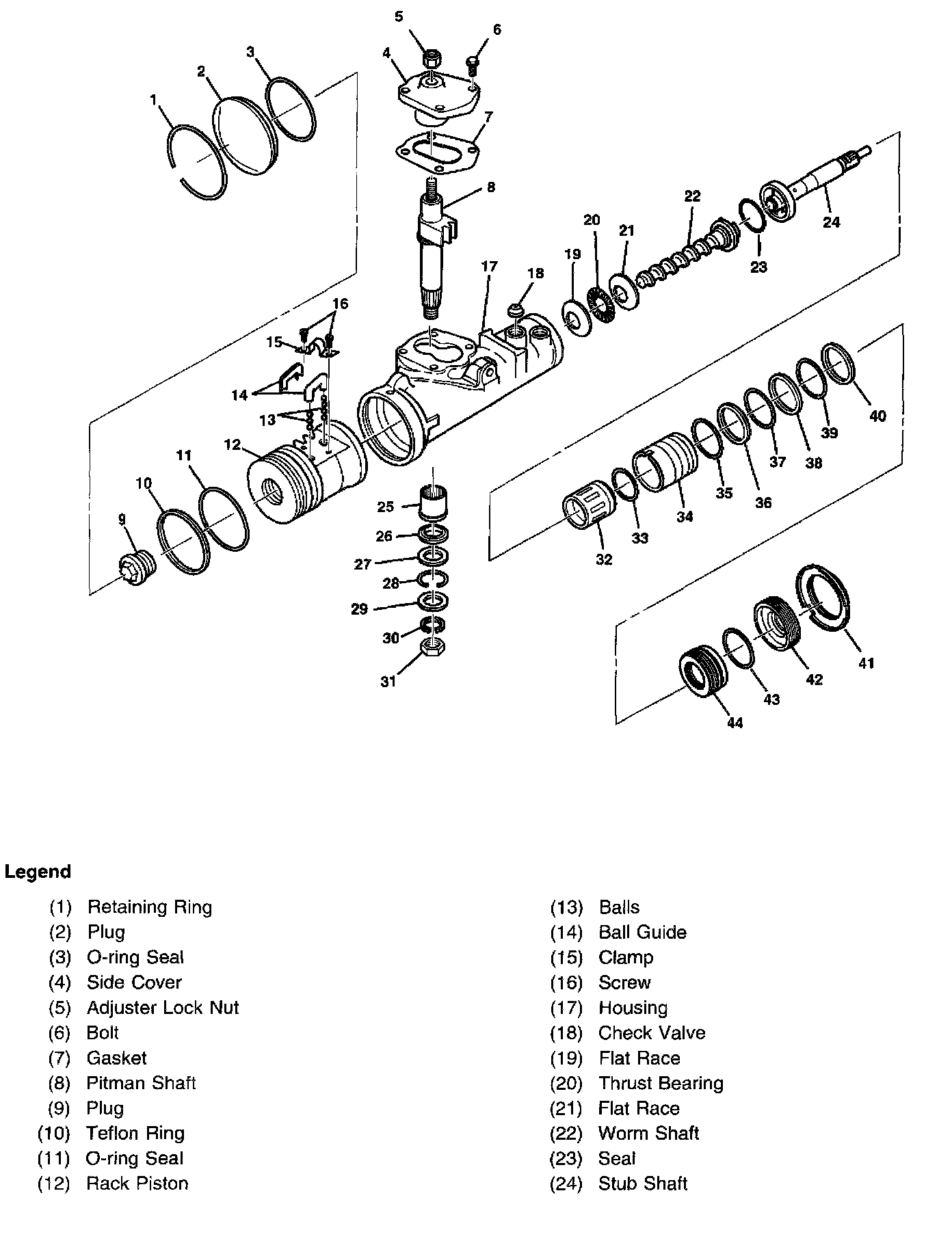

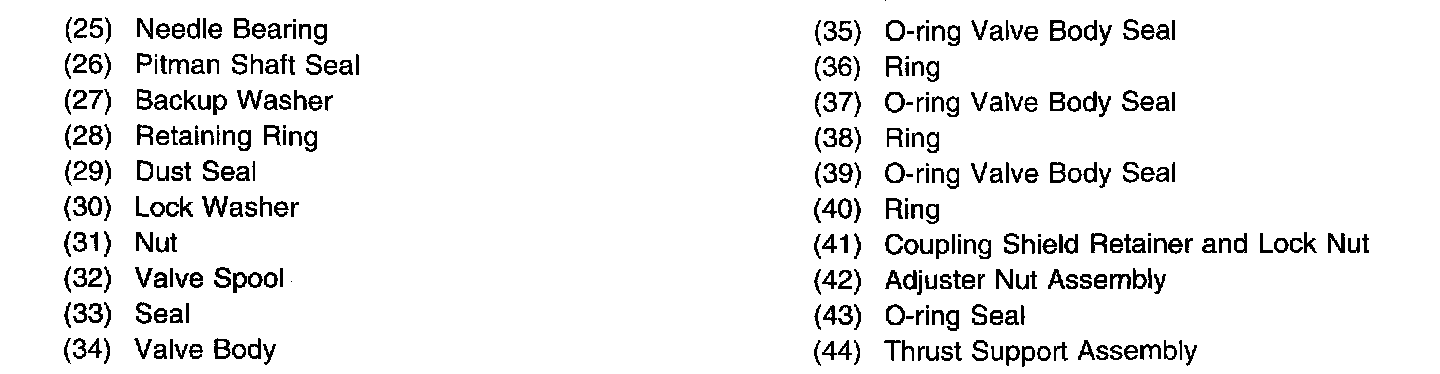

Power Steering Gear Disassembled View (Saginaw - 708Model)
