Accelerator Linkage Adjustment

ACCELERATOR LINKAGE ADJUSTMENT

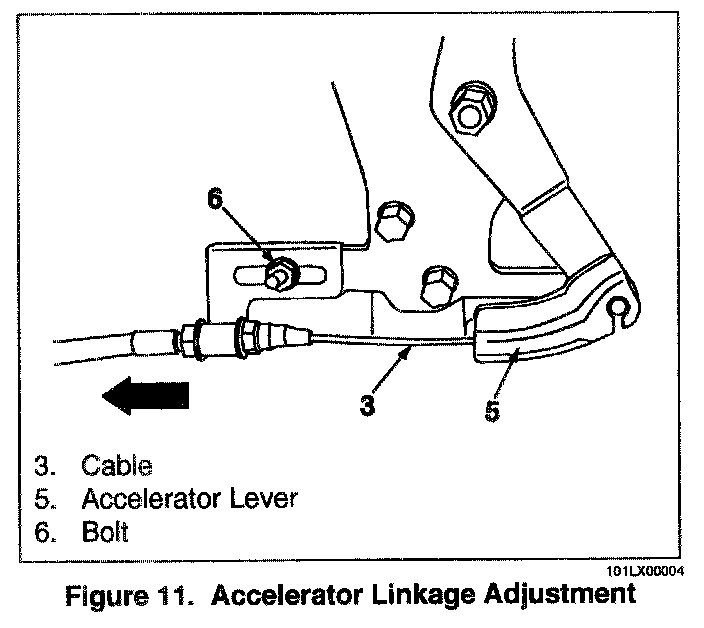

Adjust (Figure 11)
- Be sure the hand throttle control knob is in the "off" position.
1. Tilt the cab.
2. Loosen the bolt (6) on the cable bracket (figure 11).
3. Hold the accelerator lever(5) in the fully closed position and remove slack from the cable (3) by pulling in the direction of the arrow.
4. Tighten the bolt (6).
5. Check the cable and pedal assembly for free movement.
6. Lower the cab.
