Disassemble

Removal Procedure

^ Tools Required
- J 3289-20 Holding Fixture Base
- J 3289-21 Holding Fixture
- J 37769 Differential Holding Fixture Adapters
- J 8614-01 Pinion Bearing Installer
- J 22912-01 Split Plate Bearing Puller
- J 22888-D Side Bearing Remover
- J 8107-4 Differential Side Bearing Remover Plug
- J 26941 Knuckle Seal Remover
- J 23907 Slide Hammer





1. Install the mount differential carrier into the J 34162-A with the J 37769
2. Place the differential carrier and the holding fixture into the J 3289-20
3. Inscribe alignment marks on the differential side bearing caps to ensure proper assembly.

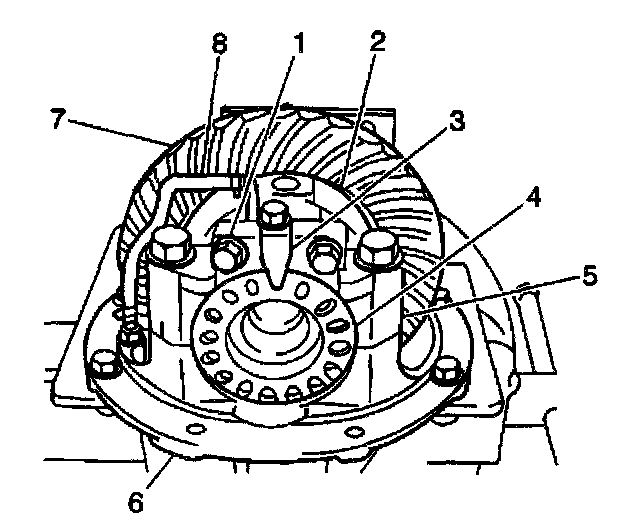

4. Remove the 2 bolts (1) and the side bearing lock plates (3) from the differential carrier.
5. Remove the differential inner air hose (8).

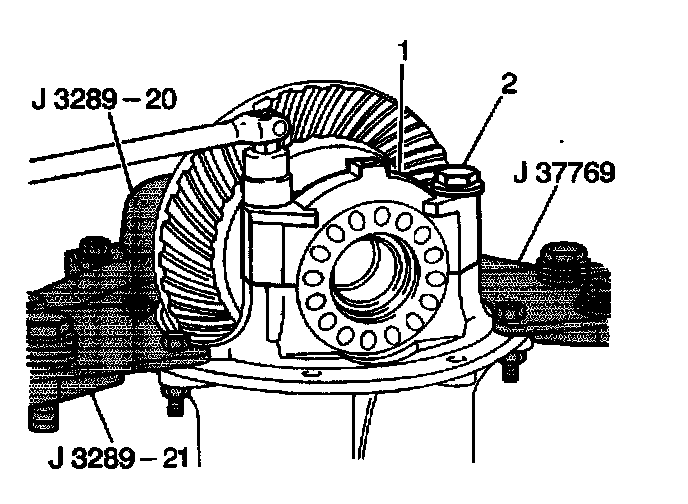

6. Remove the 4 bolts (2) and the side bearing caps (1) from the differential carrier.
7. Remove the side bearing adjusters and the bearing races from the differential carrier.
8. Remove the differential ring gear and the case from the differential carrier.
9. Turn the differential carrier and the holding fixture over so that the pinion flange nut is horizontal (90°).





10. Unstake the pinion flange (1) nut.

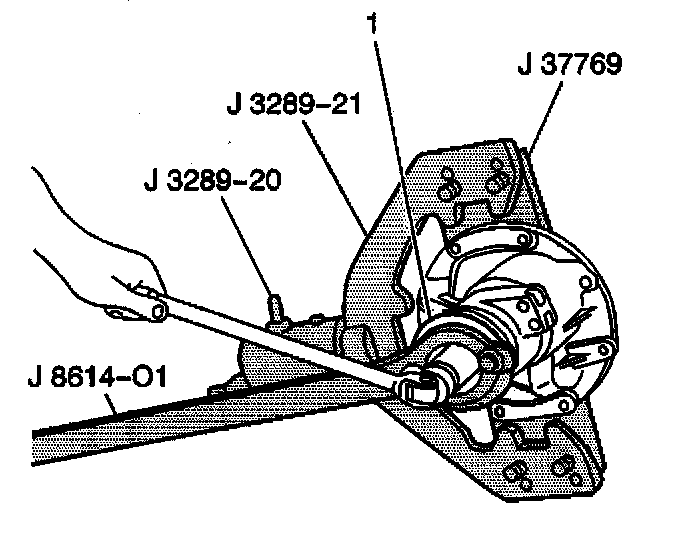

11. Remove the pinion flange nut from the pinion gear using the J 8614-01 to hold the pinion flange stationary.





12. Remove the pinion gear (1) from the differential carrier.
13. Remove the collapsible spacer.

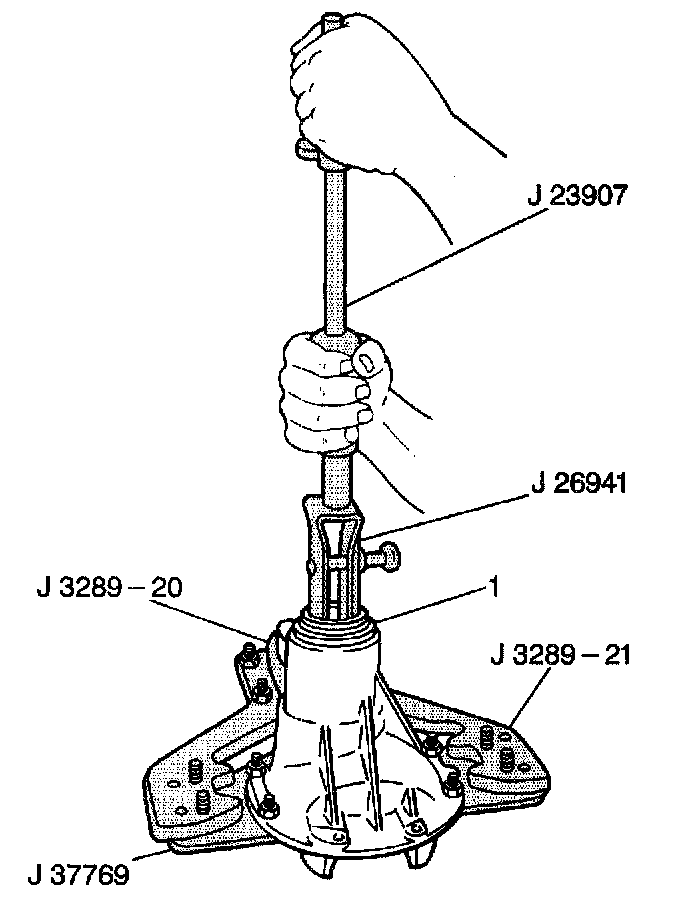

14. Remove the pinion seal (1) from the differential carrier using the J26941 with the J23907.
15. Remove the outer pinion bearing from the differential carrier.

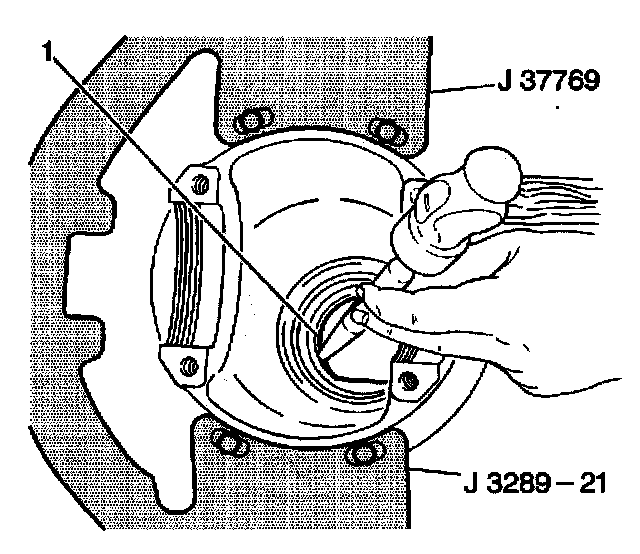

16. Remove the inner pinion bearing races (1) from the differential carrier using a large drift punch and a hammer. Tap around the rear of each bearing race and slowly drive each race out evenly.





17. Remove the outer pinion bearing races (1) from the differential carrier using a large drift punch and a hammer. Tap around the rear of each bearing race and slowly drive each race out evenly.

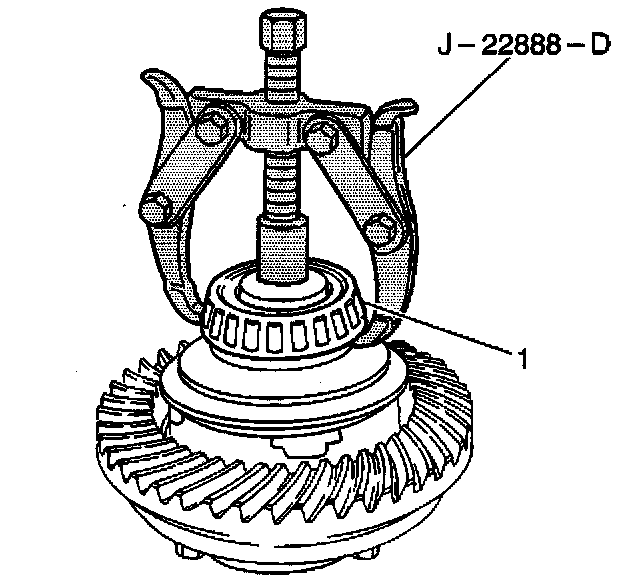

18. Remove the side bearings (1) from the differential case using the J 22888-D with the J 8107-4.
19. Remove the actuator
20. Remove the 10 bolts and the ring gear from the differential case.





21. Remove the pinion shaft roll pin, the pinion shaft (2).





22. Remove the following from the differential case:
^ The differential pinion gears (2)
^ The washers





23. Remove the side gears with selective washers.





24. Remove the inner pinion bearing (2) and the collapsible spacer from the pinion gear shaft using the J 22912-01. Place the J 22912-01 on the pinion gear shaft with the concave side toward the pinion gear. Then place the pinion gear (3) in a hydraulic press (1) and remove the inner pinion bearing.
25. Remove the pinion selective shim from the pinion gear shaft.

Important: If compressed air is used to dry the parts, do not spin dry the roller bearings with compressed air or bearing damage may result.

26. Clean all parts thoroughly with clean solvent and air dry.

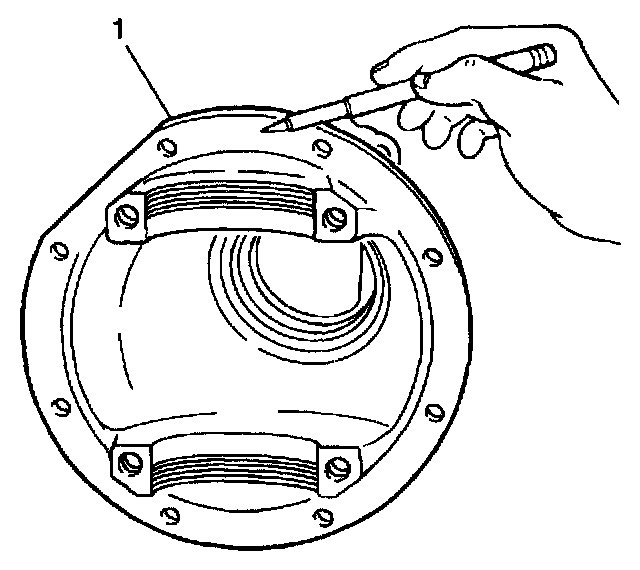

27. Inspect the differential carrier (1) and case for cracks or stripped threads and, repair or replace as necessary.





Important: Differential components are set to very close tolerances and are prone to wear should one component fail. In order to ensure accurate adjustment and even wear, the ring and pinion gears as well as all tapered roller bearings and races must be replaced as sets.

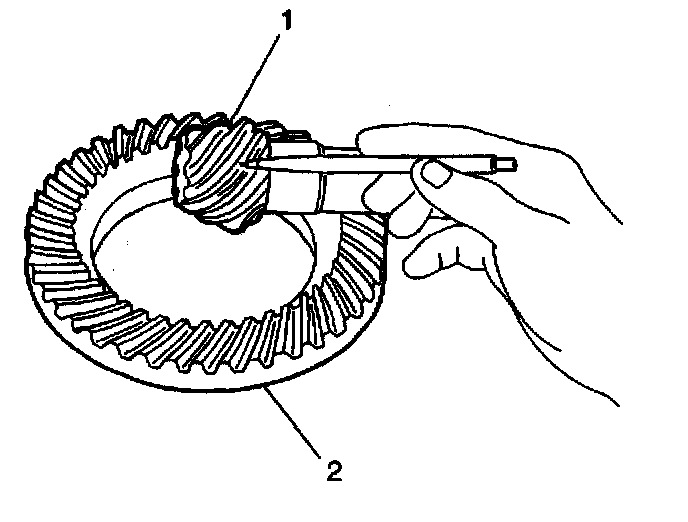

28. Inspect the ring (2) and pinion (1) gears for excessive or unusual wear, cracks, overheating or other damage and replace as necessary.
29. Inspect all roller bearings and races for roughness, locking, or other wear or damage. Replace defective parts as necessary.
30. Inspect the side and differential pinion gears for unusual wear or damage. Replace defective parts as necessary.
