19. Overdrive Overhaul (Planetary Gear Side)

Removal Procedure

^ Tools Required
- J 41681 Clutch Spring Compressor
- J 8001 Dial Indicator Set





1. Hold the overdrive clutch drum (4) in a stationary position.
2. Confirm that the input shaft (2) turns smoothly in the clockwise direction (1).
3. Confirm that the input shaft locks in the counter clockwise direction (3).





4. Remove the overdrive planetary gear (2) from the overdrive clutch drum (1).





5. Perform the following steps in order to measure the overdrive clutch piston stroke:
5.1. Temporarily install the overdrive clutch drum (1) to the oil pump (2).
5.2. Place the J 8001 plunger on the overdrive clutch piston.
5.3. Apply 392-785 kPa (57-114 psi) of compressed air into the oil passage.
5.4. Measure the movement of the overdrive clutch piston.
^ Overdrive clutch piston stroke (standard): 1.47-2.28 mm (0.058-0.089 inch)
5.5. Replace the following components as needed if the stroke is not within specifications:
^ The cushion clutch plate
^ The clutch disc





6. Remove one brake hub snap ring (2) from the overdrive clutch drum.
7. Remove the brake hub (1) from the overdrive clutch drum.

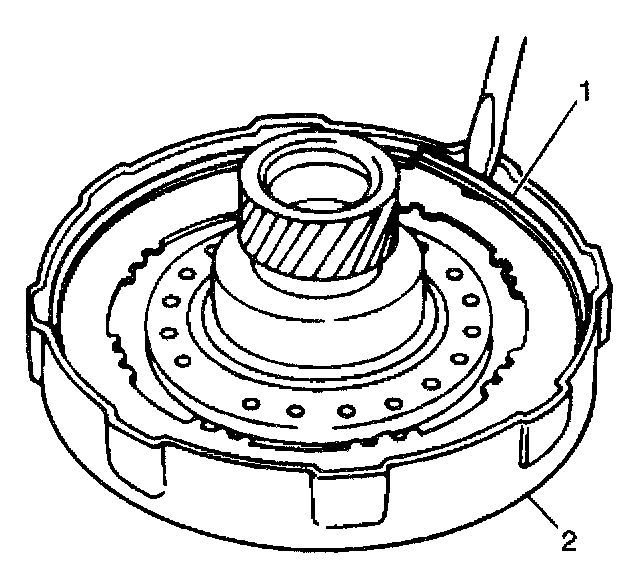

8. Remove the cushion plate snap ring (1).
9. Remove the following components from the overdrive clutch drum (2):
^ The cushion plate
^ The backing plate
^ The clutch disc

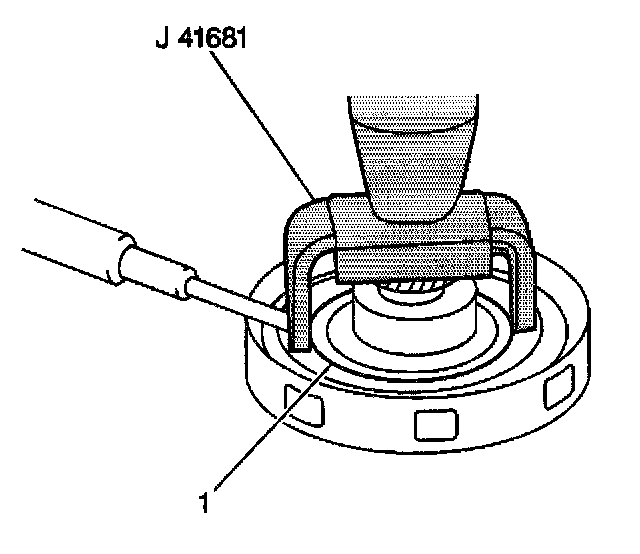

10. Compress the overdrive clutch piston (1) using J 41681 while removing the snap ring.

Important: When removing the components using compressed air, the air pressure should not exceed 98 kPa (114 psi).

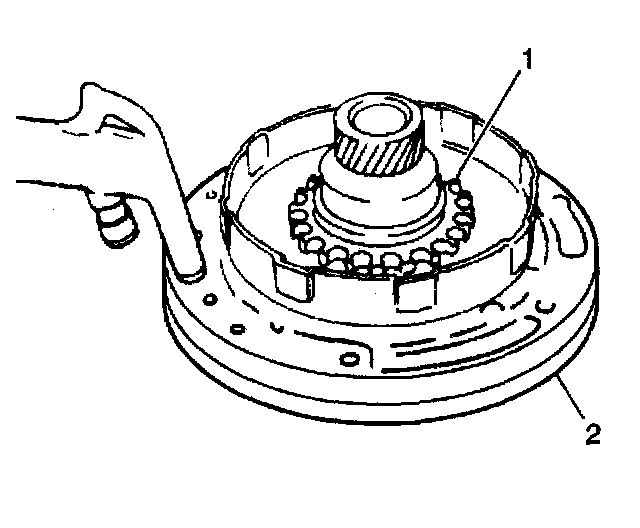

11. Temporarily install the overdrive clutch drum to the oil pump (2).
12. Apply compressed air into the oil passage.
13. Remove the overdrive clutch drum from the oil pump.
14. Remove the inner and outer O-rings from the overdrive clutch piston.





15. Remove the overdrive planetary gear snap ring using a flathead screwdriver.
16. Remove the following components from the overdrive planetary gear (1):
^ The one-way clutch
^ The thrust washer
^ The thrust bearing
17. Clean all overdrive clutch components.
18. Allow the components to air dry.
19. Inspect the overdrive clutch disc for excessive wear or damage. Replace as necessary.
20. Inspect the overdrive clutch piston porosity. Replace as necessary.
21. Shake the clutch piston in order to make sure that the check ball moves freely.

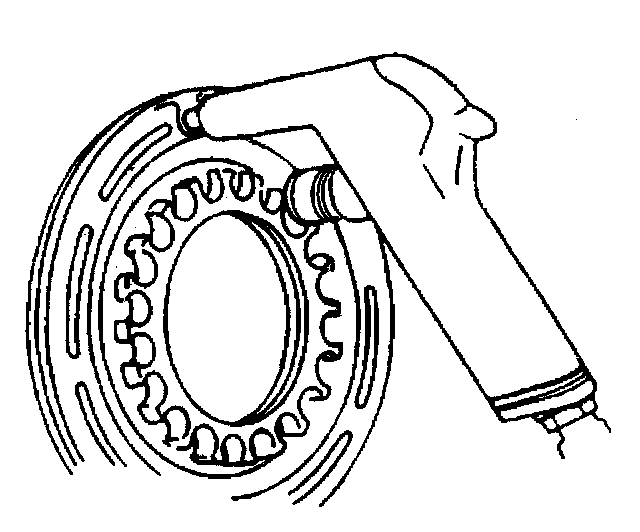

22. Apply low air pressure to the overdrive clutch piston check ball opening in order to inspect for leaks.
23. Inspect the one-way clutch flange. Replace as necessary.
24. Inspect the planetary thrust washer. Replace as necessary.


Installation Procedure

^ Tools Required
- J 41681 Clutch Spring Compressor
- J 36850 Transjel(TM) Transmission Assembly Lubricant

Important: When installing the one-way clutch snap ring, do not align the snap ring opening with the lug on the clutch piston spring retainer.

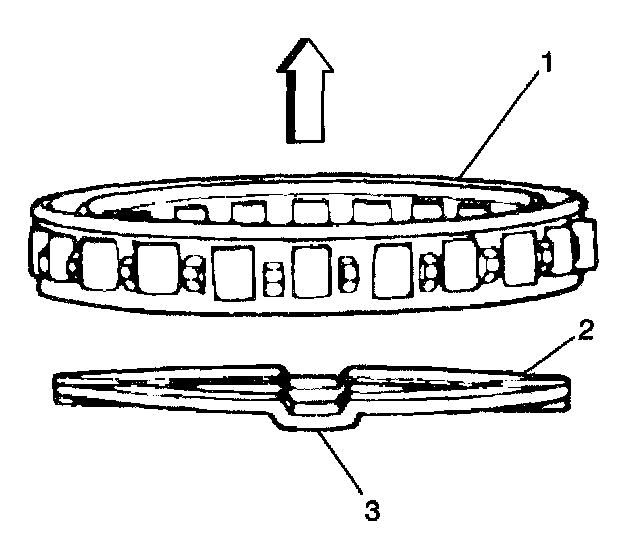

1. Install the planetary thrust washer (2) with the oil groove (3) facing the front.
2. Install the one-way clutch outer bearing race with the flange (1) facing the front.
3. Apply J 36850 to the following components:
^ The thrust bearing
^ The planetary thrust washer
4. Install the thrust bearing and the planetary thrust washer into the overdrive planetary gear.





5. Install the one-way clutch to the overdrive planetary gear.

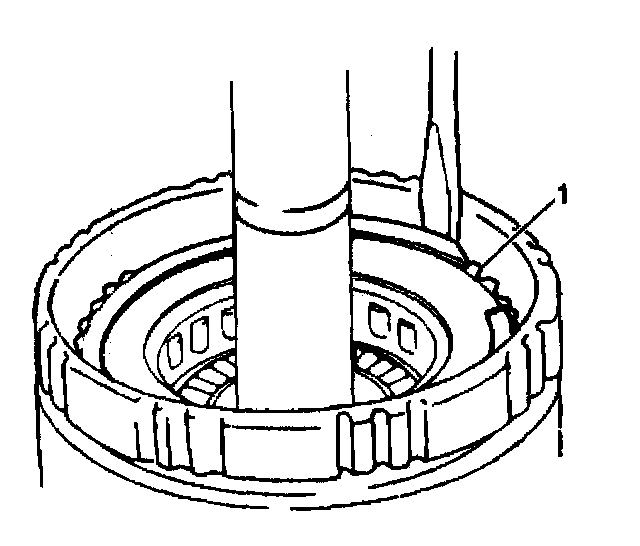

6. Install the overdrive planetary gear snap ring (1).
7. Install new O-rings to the inner and outer overdrive clutch pistons.
8. Lubricate the O-rings with A/T fluid.
9. Install the overdrive clutch piston to the overdrive clutch drum.
10. Install the overdrive clutch piston return springs (2).





11. Compress the overdrive clutch piston (1) using J 41681 while installing the overdrive clutch piston snap ring.

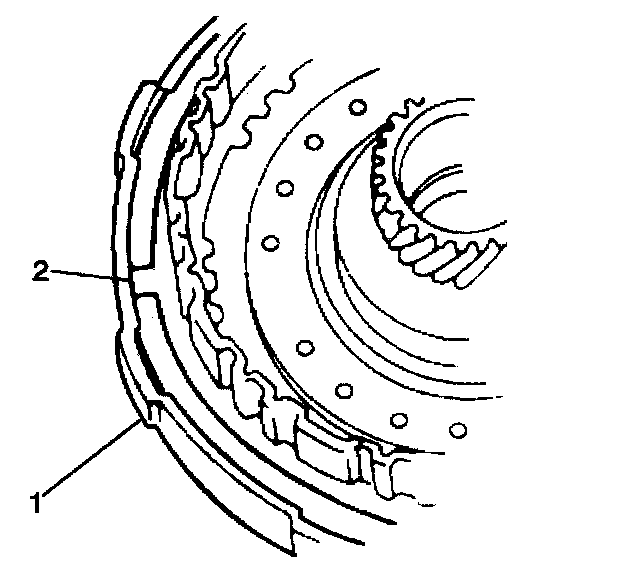

Important: Refer to the graphic when installing the cushion plate.





12. Install the following components to the overdrive clutch drum:
^ The clutch disc
^ The backing plate
^ The cushion plate (1)
^ The snap ring
^ The brake hub





13. Install the brake hub snap ring (2).
