TR Switch Position and Stoplamp Switch

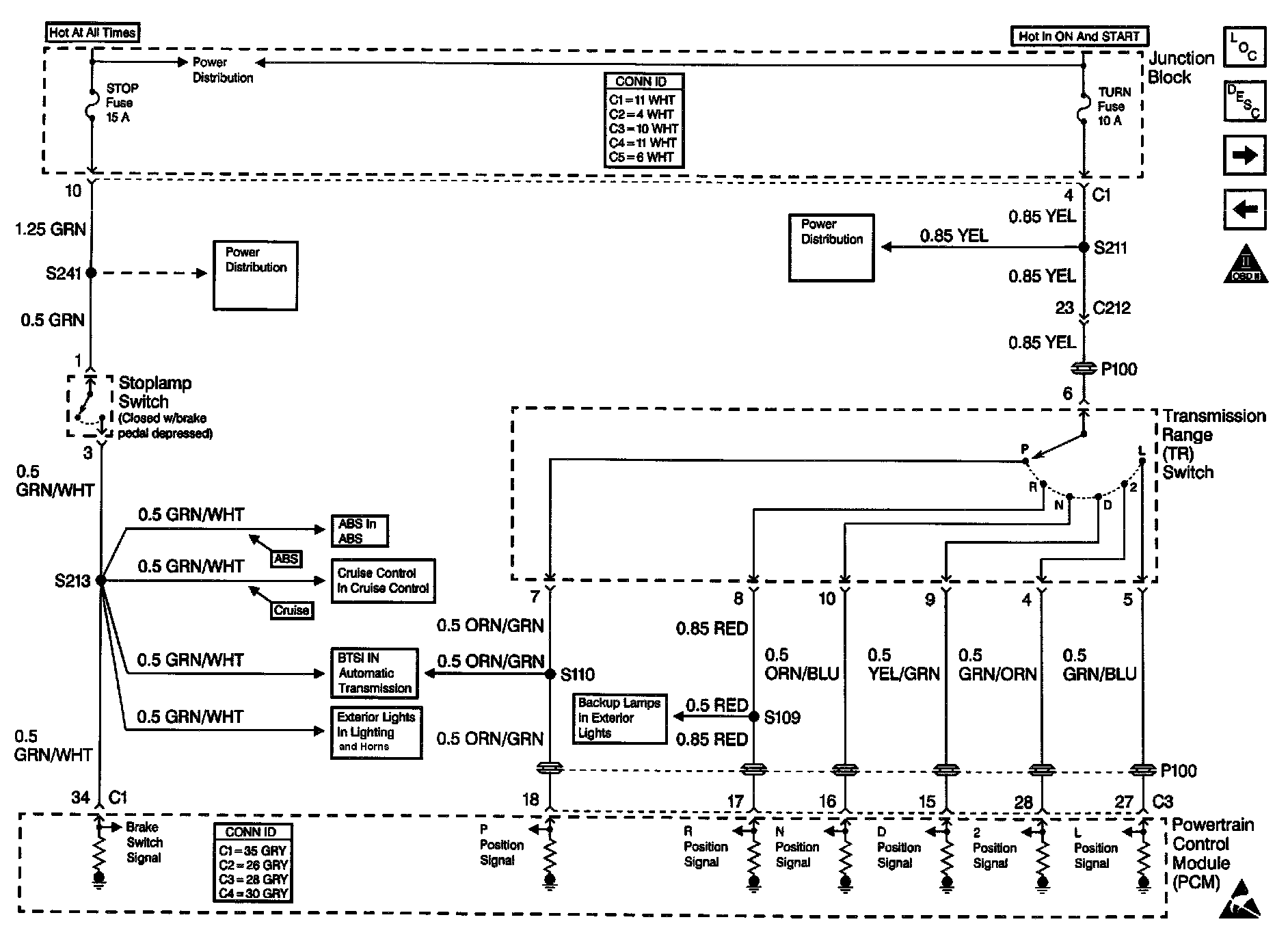

Engine Controls Schematics: TR Switch Position And Stoplamp Switch Inputs:
