Home >> Chevy Truck >> 2000 >> Tracker 4WD L4-2.0L VIN C >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Sensors and Switches - Computers and Control Systems >> Vehicle Speed Sensor >> Locations >> Wheel Speed Sensor, Front

Wheel Speed Sensor, Front

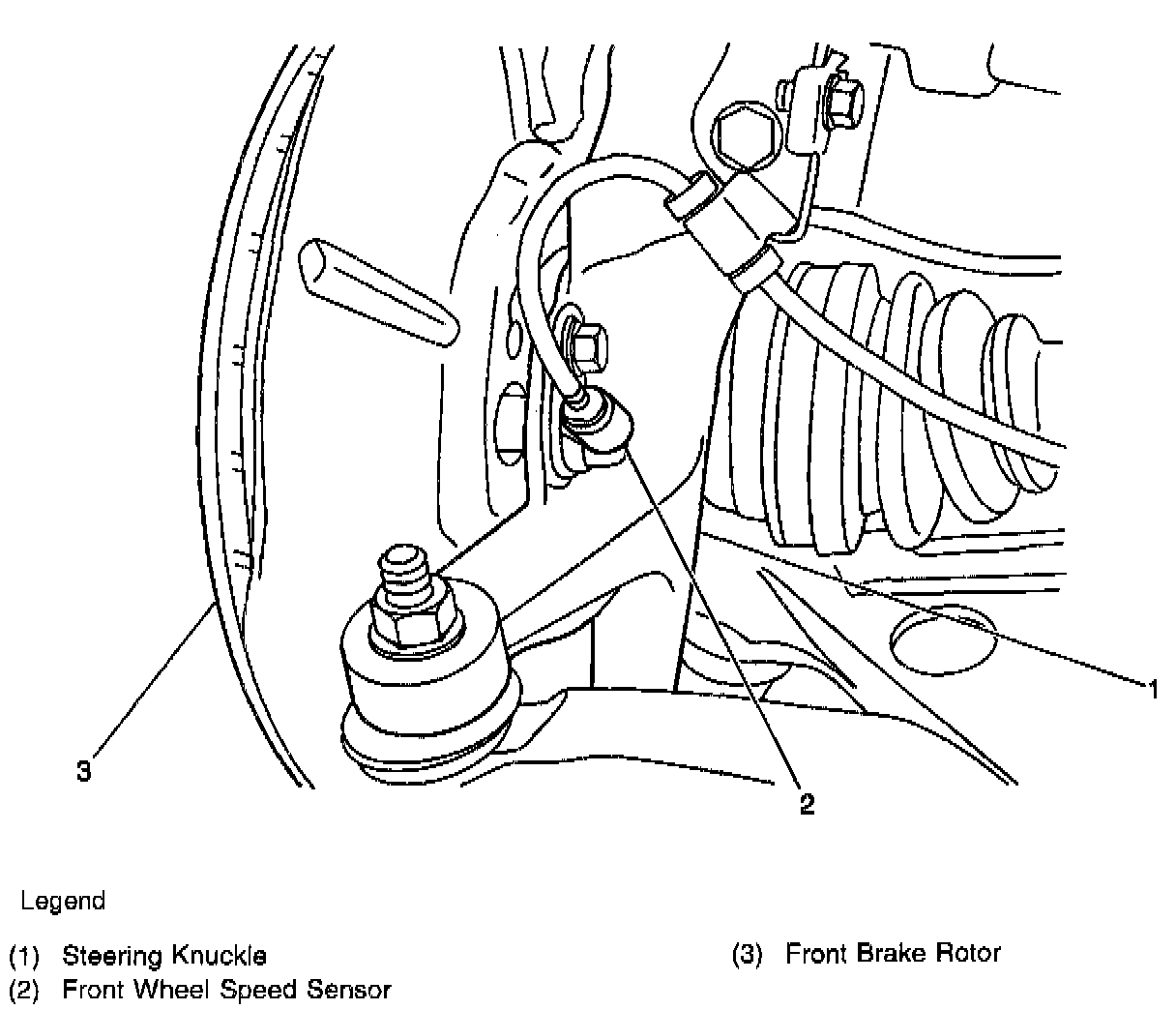

Four Wheel Speed Sensor Component View:
