System Diagnosis - Reference Table - TXV A/C System
System Diagnosis - Reference Table - TXV A/C System

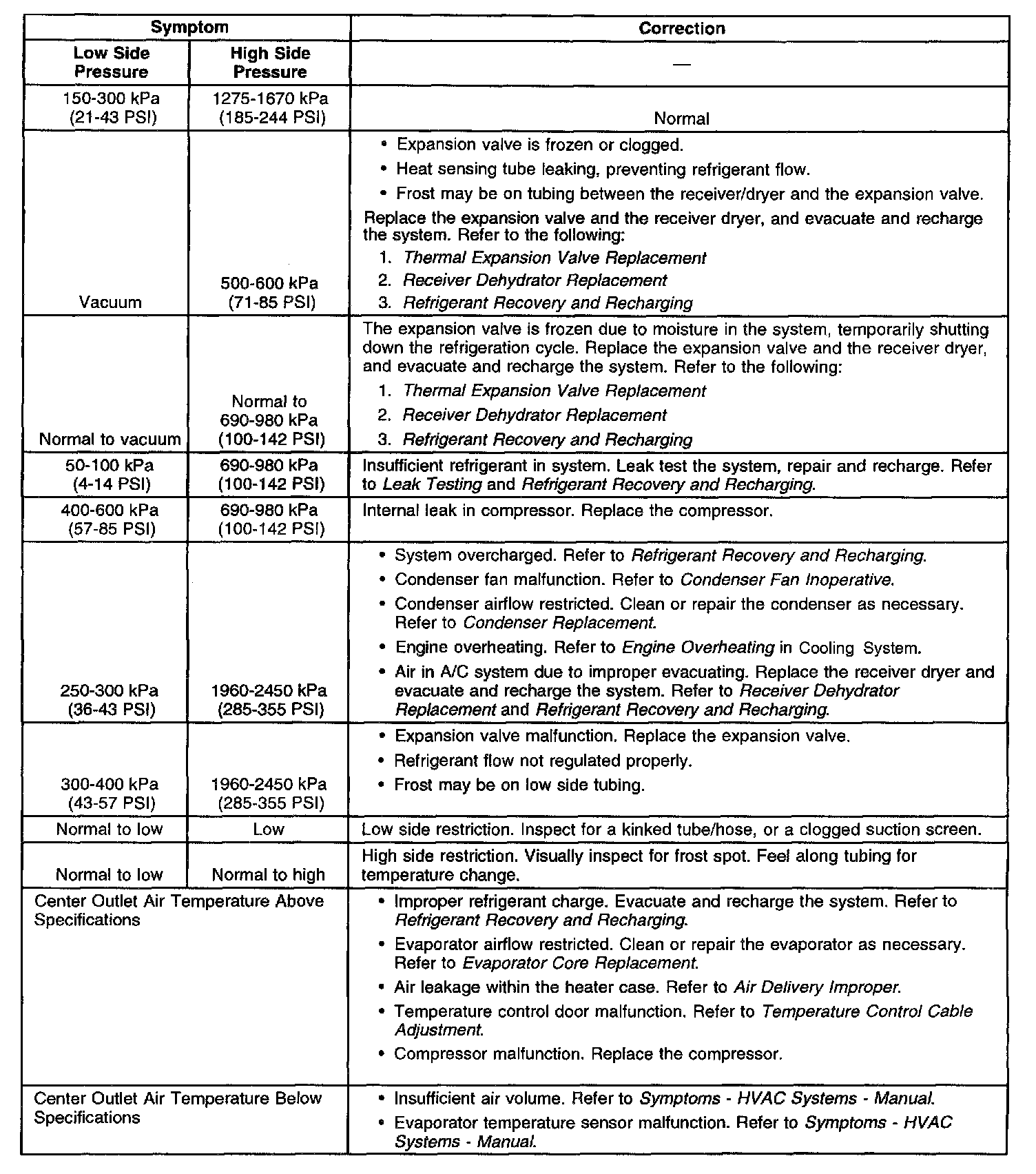

TXV A/C System Diagnosis (Reference Table):
