Main Bearing Cap Bolts Clean and Inspect

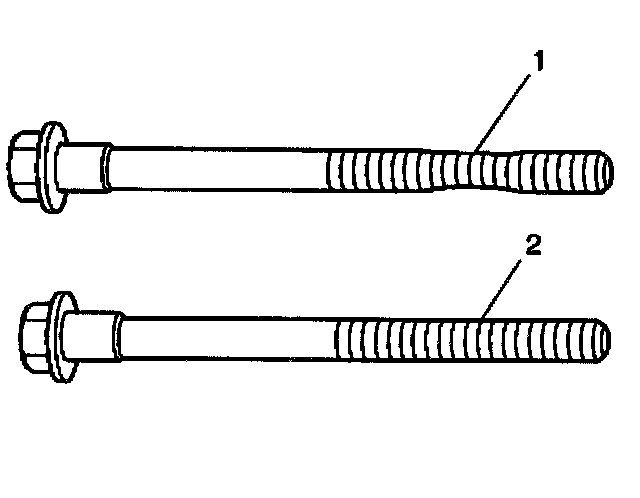

1. Clean the main bearing cap bolts. Compare the main bearing cap bolts to a known good bolt (2) if necessary.





2. Inspect the main bearing cap bolts for the following:
^ Damaged threads
^ Stretching (1)
^ Damaged heads caused by improper use of tools

3. Replace the main bearing cap bolts as necessary.
