Home >> Chevy Truck >> 2000 >> Tracker 4WD L4-2.0L VIN C >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Lighting and Horns >> System Diagram >> Interior Lights >> Interior Lights Dimming Schematics >> Light Switch And Tail Relay

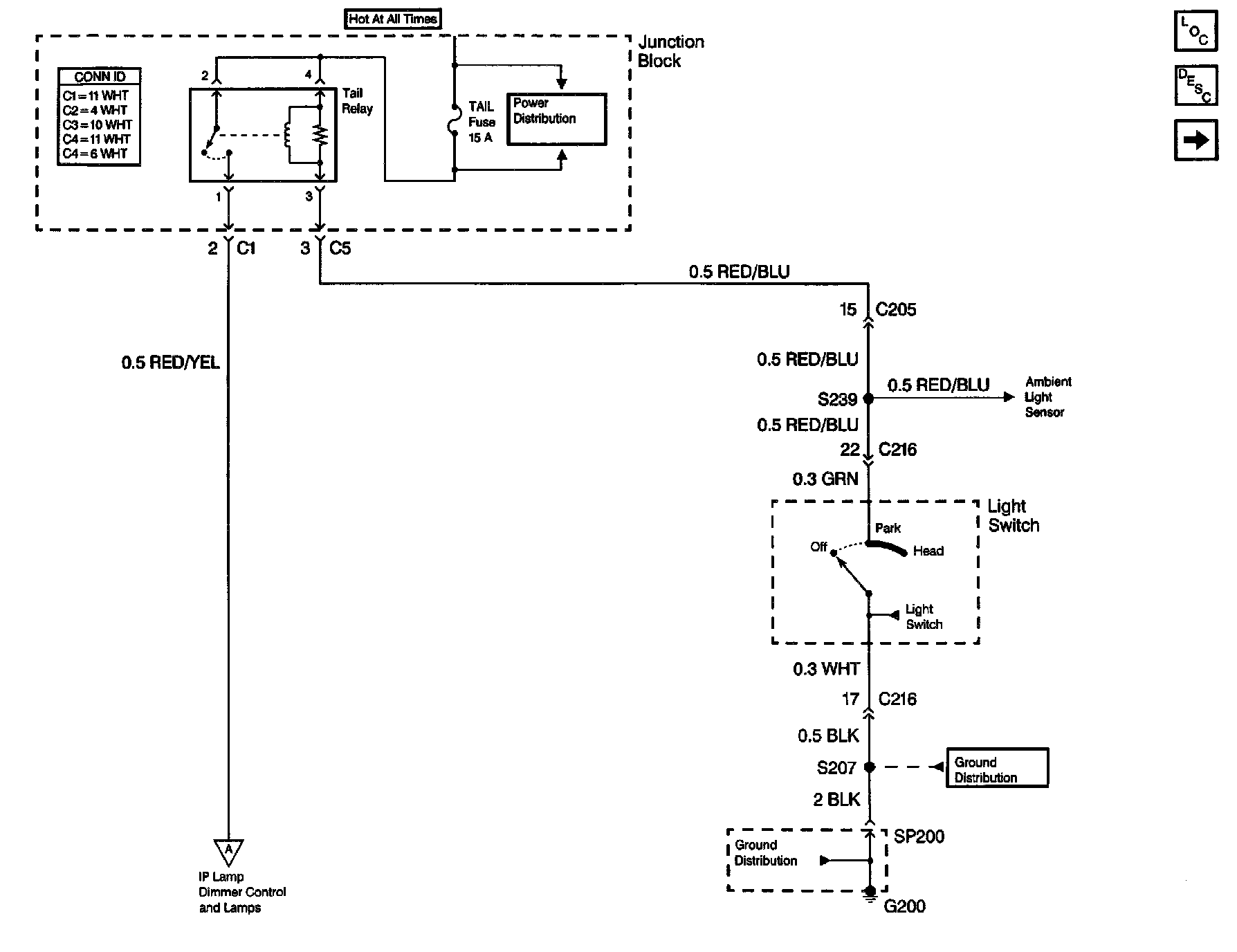

Light Switch And Tail Relay

Interior Lights Dimming Schematics: Light Switch And Tail Relay:
