ECT, Fuel Gauge, Tachometer and Oil Indicator
ECT, Fuel Gauge, Tachometer and Oil Indicator

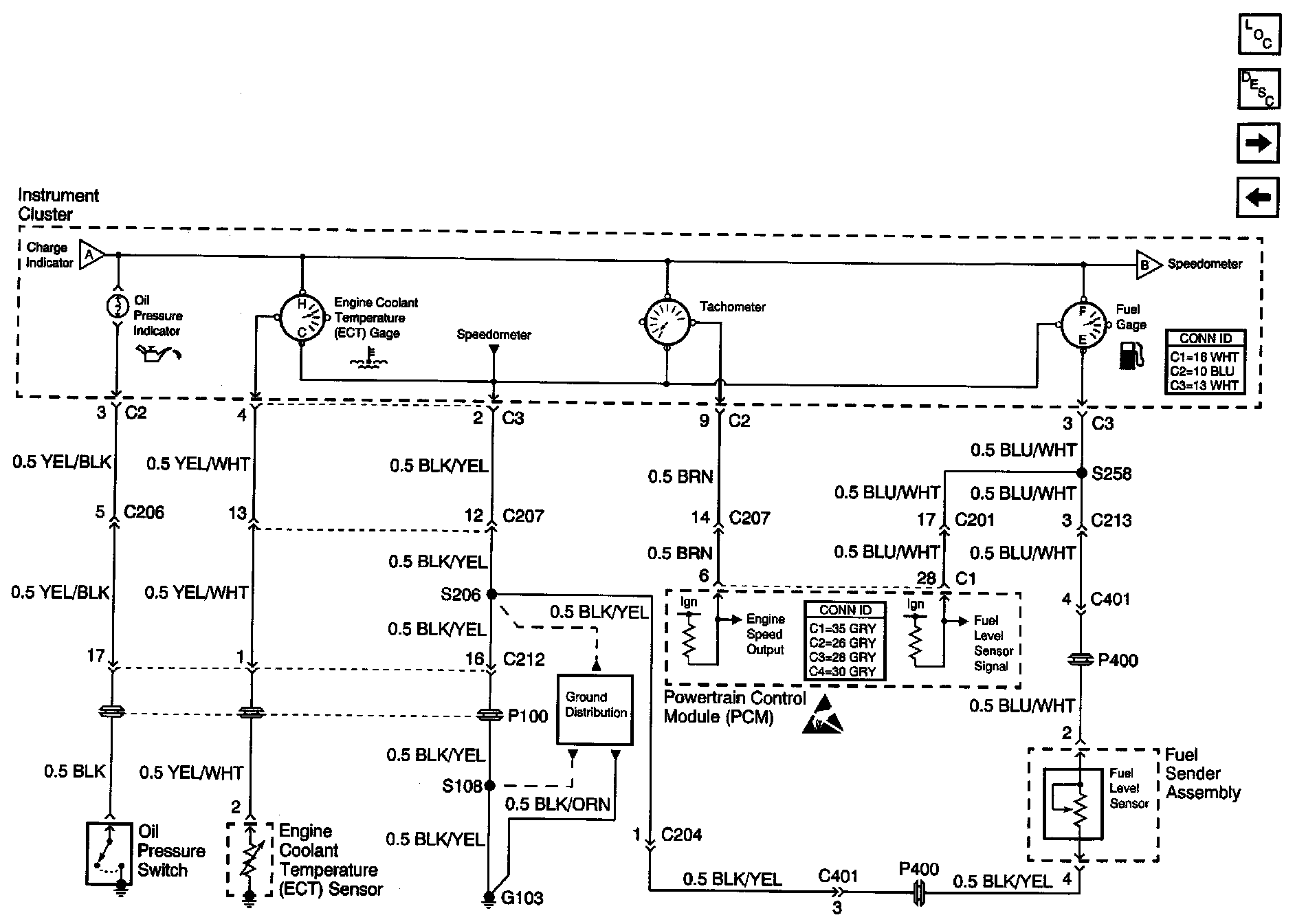

Instrument Cluster: Analog Schematics (ECT,fuel,tachometer And Oil Indicator):
