Rear Compartment Trim Panel Replacement

Rear Compartment Trim Panel Replacement

Removal Procedure





1. Remove the folding top rear window in order to gain the necessary access to remove the rear compartment panel. Refer to Folding Top Rear Window Replacement in Roof.

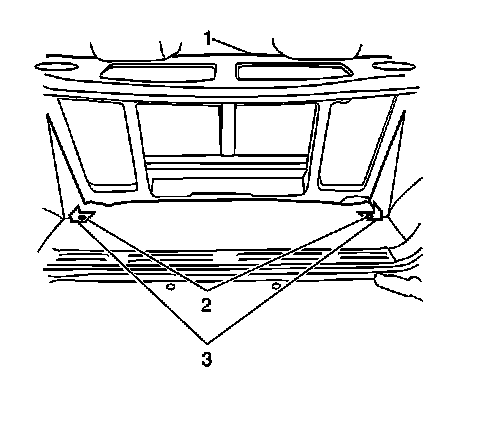

2. Remove the 2 bolts (2) and 2 mounting brackets (3) which secure the rear compartment panel (1).
3. Remove the rear compartment panel (1) from the vehicle.



Installation Procedure






Notice: Refer to Fastener Notice in Cautions and Notices.

1. Install the rear compartment panel (1) to the vehicle. Secure the panel with the 2 mounting brackets (3) and the 2 bolts (2).

Tighten the rear compartment panel mounting bolts to 10 N.m (89 lb in).

2. Install the folding top rear window. Refer to Folding Top Rear Window Replacement in Roof.
