Security Panel Hook and Bracket Replacement

Security Panel Hook and Bracket Replacement

Removal Procedure

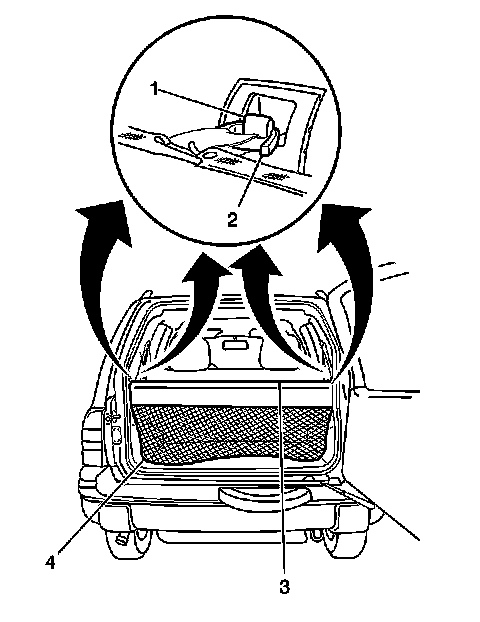

1. Unattach the loop (2) that retains the rear security cover (3) to the rear security cover hook and bracket (1).




2. Remove the rear compartment convenience net (3), if necessary. Refer to Compartment Convenience Net Replacement - Rear (Compartment Convenience Net Replacement - Rear) .
3. Remove the screw (2) and the rear security cover hook and bracket (1) from the vehicle.



Installation Procedure





1. Install rear security cover hook and bracket (1) to the vehicle. Secure the hook and bracket with the screw (2).
2. Install the rear compartment convenience net (3), if removed. Refer to Compartment Convenience Net Replacement - Rear (Compartment Convenience Net Replacement - Rear) .




3. Attach the loop (2) that retains the rear security cover (3) to the rear security cover hook and bracket (1).
