Rear Door Window Glass: Adjustments

Window Molding Replacement - Rear Door Stationary

Removal Procedure





1. Remove the rear side door stationary window. Refer to Rear Side Door Stationary Window Replacement (Service and Repair) .

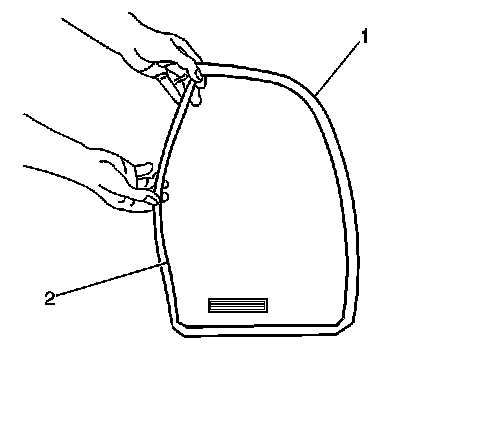

2. Remove the rear side door stationary window weatherstrip (1) from the stationary window (2).



Installation Procedure





1. Install the rear side door stationary window weatherstrip (1) to the stationary window (2).
2. Install the rear side door stationary window. Refer to Rear Side Door Stationary Window Replacement (Service and Repair) .
