Transmission Oil Change Procedure

1. Raise and suitably support the vehicle. Refer to Vehicle Lifting.
2. Place a drain pan or suitable container underneath transmission.

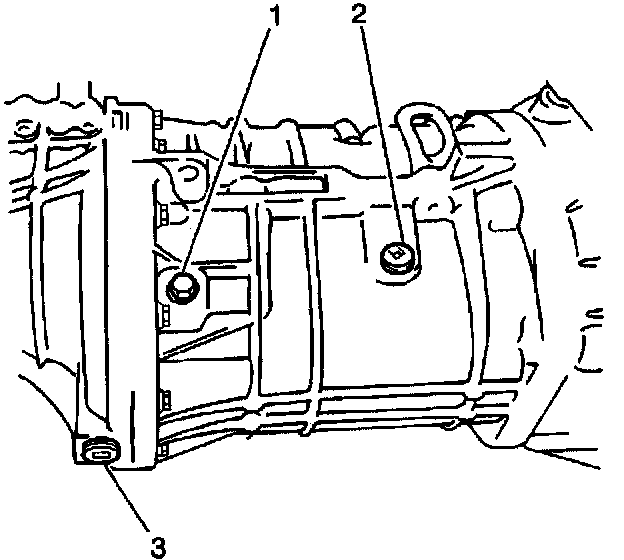

3. Remove transmission oil level/filler plug from transmission (2 Wheel Drive Models) (2).

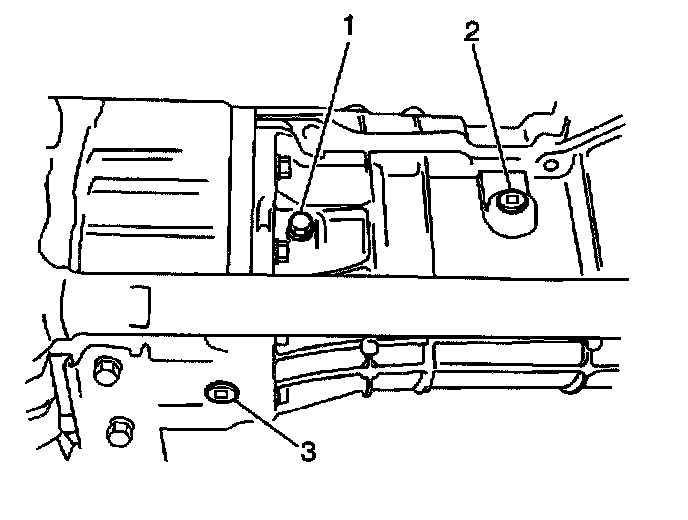

4. Remove the transmission oil level/filler plug from the transmission 4 Wheel Drive Models (3).

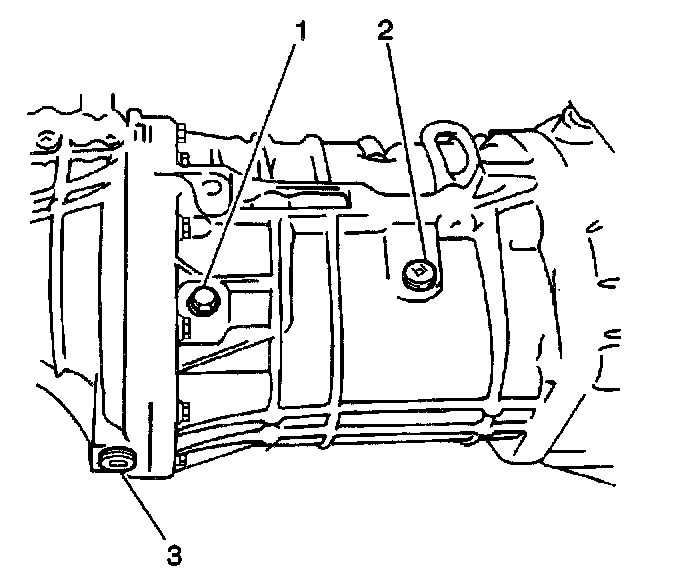

5. Remove transmission drain plug from transmission and drain transmission oil (2 Wheel Drive Models) (3).
6. Apply GM P/N 12346004, or equivalent, to the threaded portion of the transmission drain plug (3).





Notice: Refer to Fastener Notice Service Precautions.

7. Install transmission drain plug (3) into the transmission (2 Wheel Drive Models).
^ Tighten the transmission drain plug to 28 Nm (20 ft. lbs.).

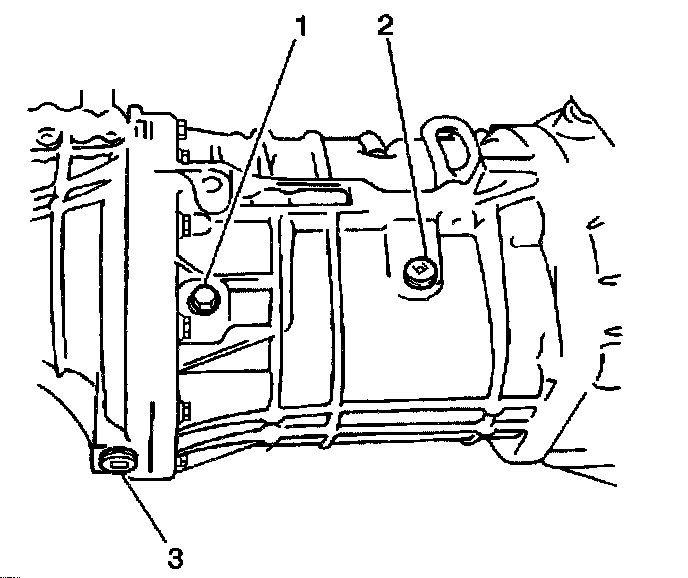

8. Pour approximately 1.5 liters (1.6 qts) of GM Goodwrench Synthetic Manual Transmission Fluid, (GM P/N 12346190) or equivalent SAE 75W-90 GL-4 Gear Oil into the transmission oil level/filler plug (2) hole. Oil level should be even with the bottom of the transmission oil lever/filler plug hole.
9. Apply GM P/N 12346004 or the equivalent, to the threaded portion of the transmission oil level/filler plug (2).





10. Install transmission oil level/filler plug (2) into the transmission (2 Wheel Drive Models).
^ Tighten the transmission drain plug to 28 Nm (20 ft. lbs.).
11. Install transmission oil level/filler plug (2) into the transmission.
12. Remove the drain pan from underneath the transmission.
13. Lower the vehicle.
