Gearshift Controls

Gear Control Lever

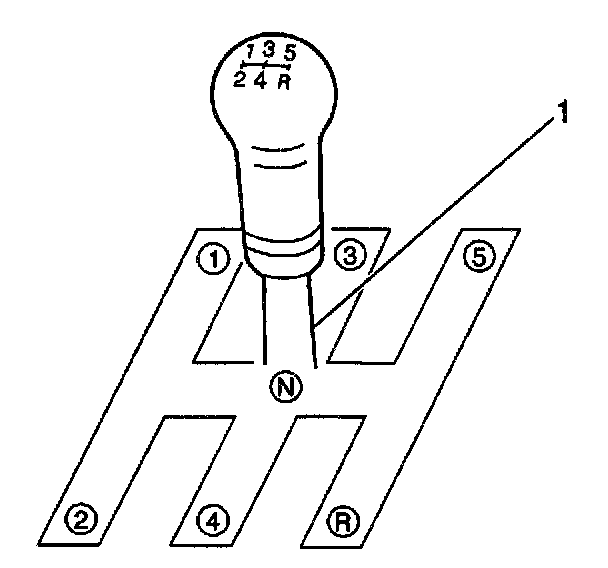

Gearshift control lever (1) pattern.


Gear Shift Lever Operation

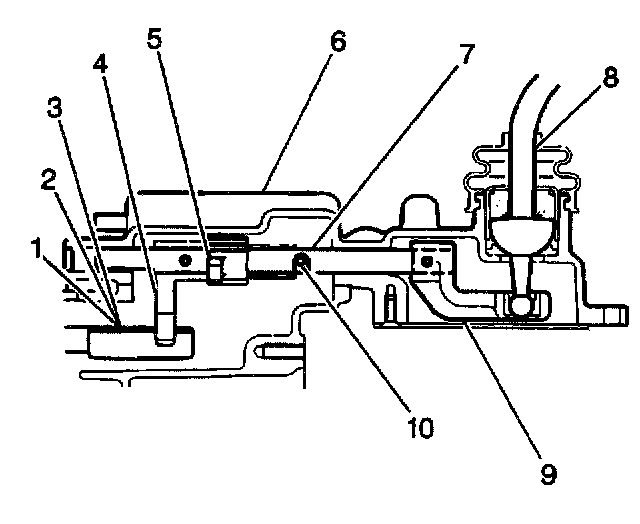

Gear selection is transmitted from the gearshift control lever (8) into the gearshift lever case (6) located at the rear of the transmission. The gearshift lever case (6) contains a gearshift arm (9), a reverse gearshift limit yoke (5), and a gearshift lever (4). These three components are attached to the gearshift shaft (7). The gearshift control lever (8) is fitted into the gearshift arm (9). When the gearshift control lever (8) is moved, the gearshift arm (9), the gearshift shaft (7) and the gearshift lever (4) are moved forward, backward, left or right, depending upon the gear selected.

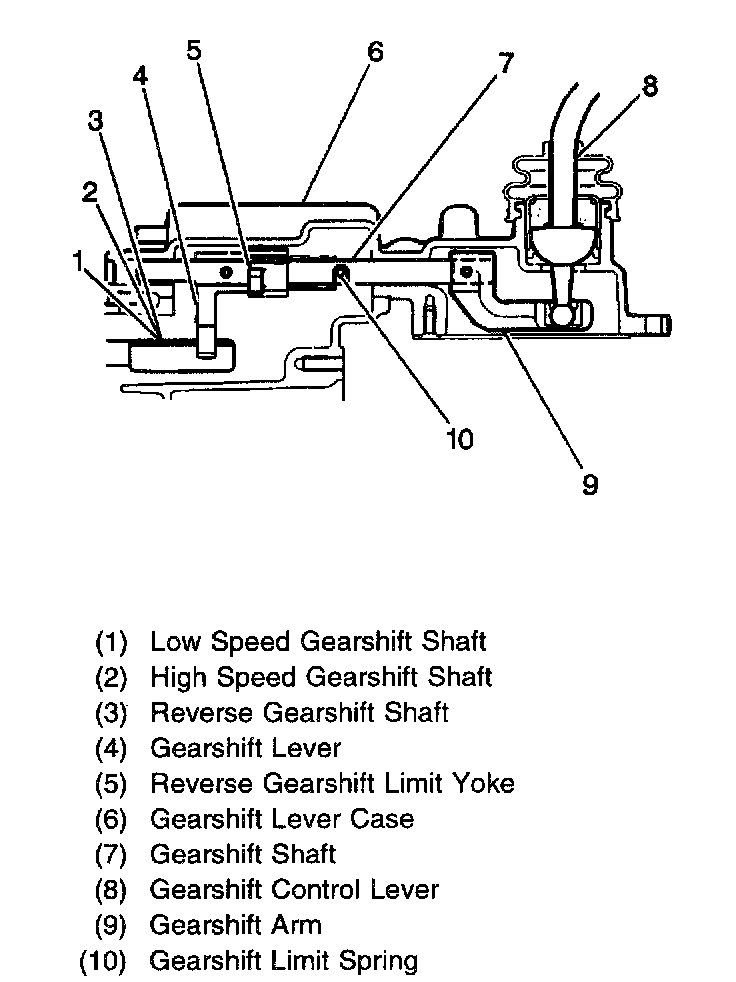

Gear Shift Lever Components
