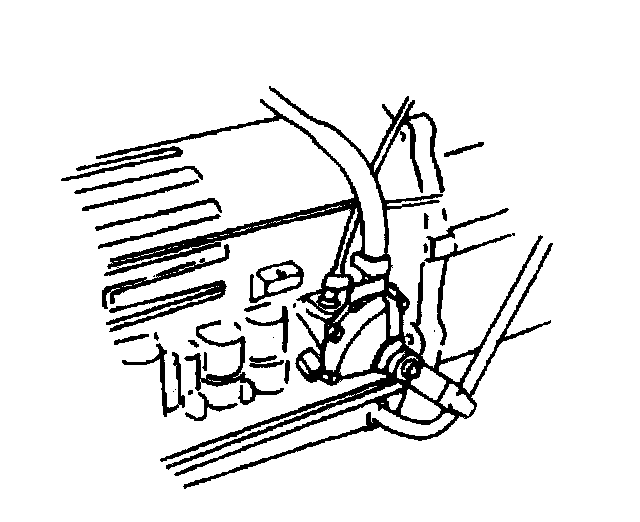

3. Transmission Range Switch Removal

1. Remove the following manual lever components from the manual shaft:
^ The nut
^ The washer
^ The lever
2. Unstake the lock plate behind the manual shaft nut.
3. Remove the following components from the transmission range switch:
^ The manual shaft nut
^ The lock plate
4. Remove the transmission range switch retaining bolt.
5. Remove the transmission range switch from the manual shaft.
6. Remove the shift cable and the shift bracket.
