29. Reverse Brake Piston Installation

^ Tools Required
- J 41681 Clutch Spring Compressor
- J 23327 Clutch Spring Compressor

1. Install new O-rings at the following locations:
^ The inner reverse brake piston
^ The reaction sleeve
^ The outer reverse brake piston
2. Lubricate the new O-rings with A/T fluid.
3. Install the following components to the transmission case:
^ The outer reverse brake piston
^ The reaction sleeve
^ The inner reverse brake piston

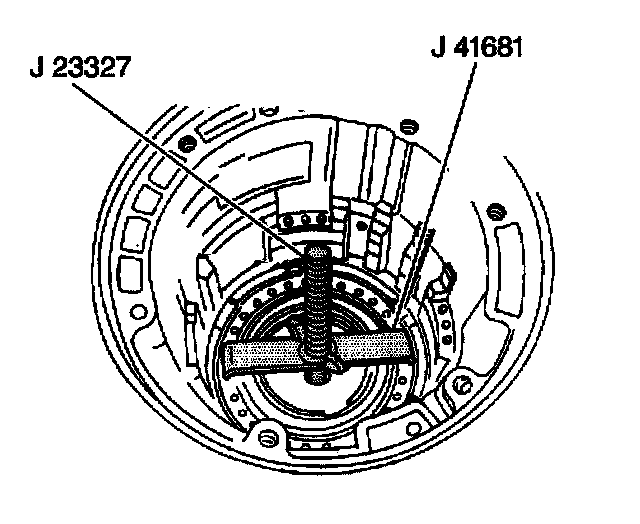

4. Compress the reverse brake piston using the J 41681 and the J 23327 in order to install the snap ring.
