Rear Suspension Fasteners

Inspect for tightness each bolt and nut used for fastening suspension parts. Tighten loose fasteners to the specified torque. Refer to Fastener Tightening Specifications.

Bearing Retainer and Axle Shaft Inner Oil Seal Inspection





- Inspect the backside of the brake backing plate (1) for oil leakage. If you find any leakage, replace the defective oil seal.

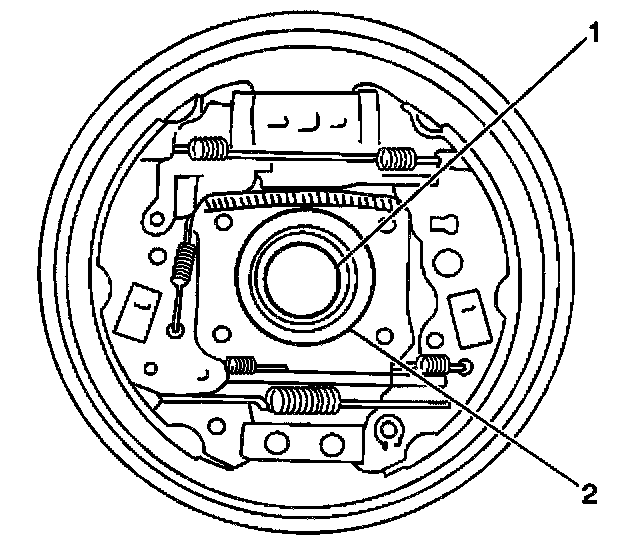

- Inspect the oil seal lip (1). If you find any oil leakage or a worn lip, replace the defective oil seal.
- Inspect inside of the brake drum for grease or oil leakage.
