Lower,Upper Control Arm, Rear Axle Tie Rod Inspection - Rear Suspension

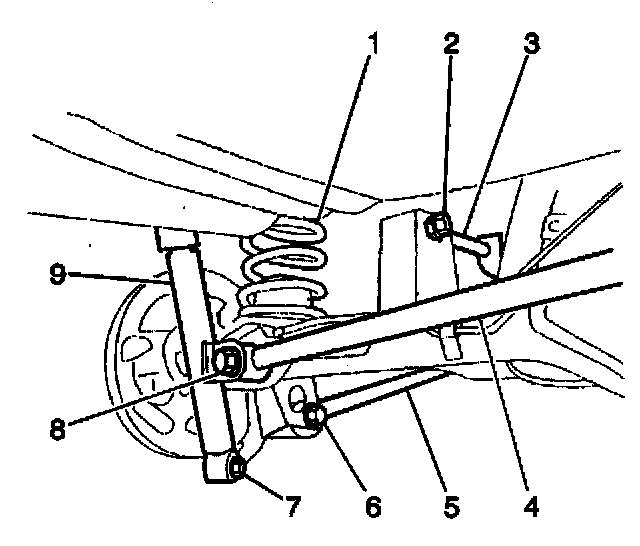

- Inspect the lower control arm (5) for cracks, deformation, or damage.
- Inspect the upper control arm (3) for cracks, deformation, or damage.
- Inspect the rear axle tie rod (4) for cracks, deformation, or damage.
- Inspect the bushings for wear and damage. Replace any defective part.
