Installation Procedure

Important: DO NOT tighten the lower control arm nuts and bolts completely. The weight of the vehicle must be on the wheels and tires before tightening the nuts and bolts.

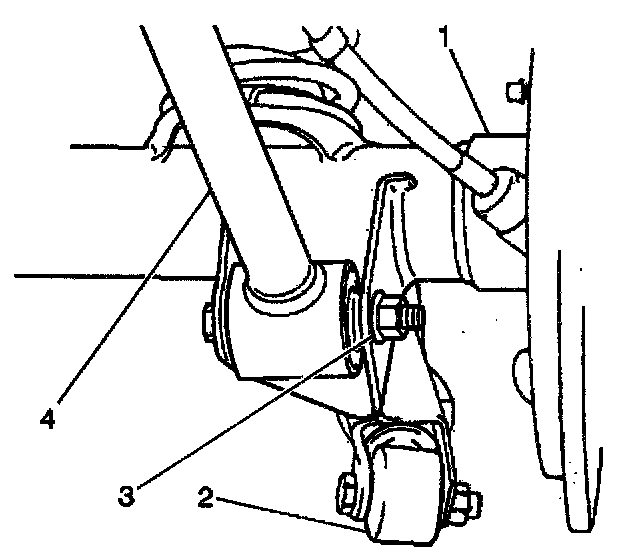

1. Install the following components to the rear axle housing (1):
- The lower control arm (4)
- The bolt
- The washer
- The nut (3)





2. Install the following components to the frame:
- The lower control arm (1)
- The bolt (2)
- The washer

3. Remove the floor jack from the rear axle housing.
4. Lower the vehicle.

Notice: Refer to Fastener Notice in Cautions and Notices.

5. With the weight of the vehicle on the tires and wheels, tighten the lower control arm nuts and bolts.
- Tighten the nuts and the bolts to 90 Nm (65.0 ft. lbs.).
