Removal Procedure

1. Remove the front suspension lower control arm. Refer to Lower Control Arm Replacement.

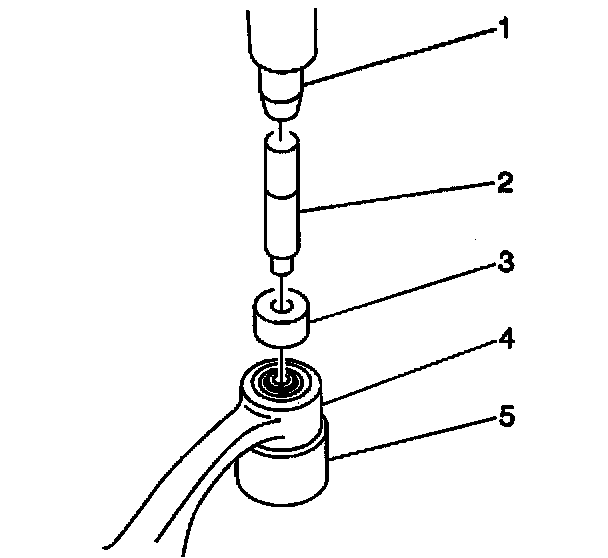

2. Use a hydraulic press (1) in order to remove the front bushing from the control arm (4).

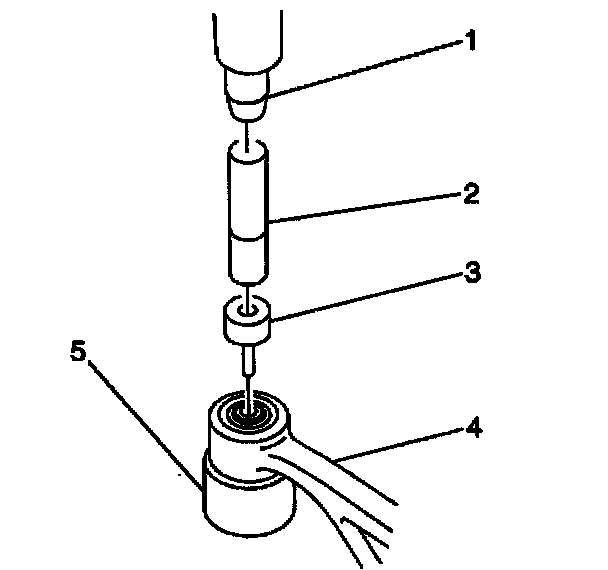

3. Use a hydraulic press (1) in order to remove the rear bushing from the control arm (4).
