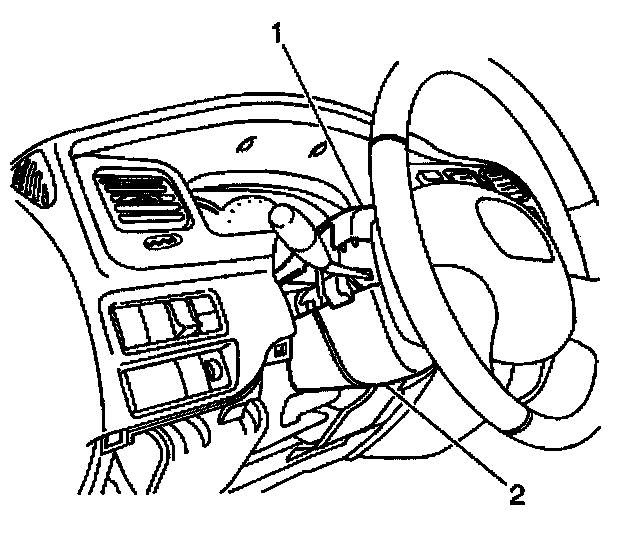

Steering Column Trim Covers - Disassemble





1. Remove the 3 screws from the steering column lower trim cover (2).





2. Remove the steering column lower trim cover (2).
3. Remove the steering column upper trim cover (1).
