Ignition Switch

STEERING COLUMN LOCK AND IGNITION SWITCH CYLINDER REPLACEMENT

REMOVAL PROCEDURE

CAUTION: Refer to SIR Handling Caution in Service Precautions.

1. Disable the SIR System.
2. Remove the steering column trim covers.
3. Disconnect the ignition switch connector.

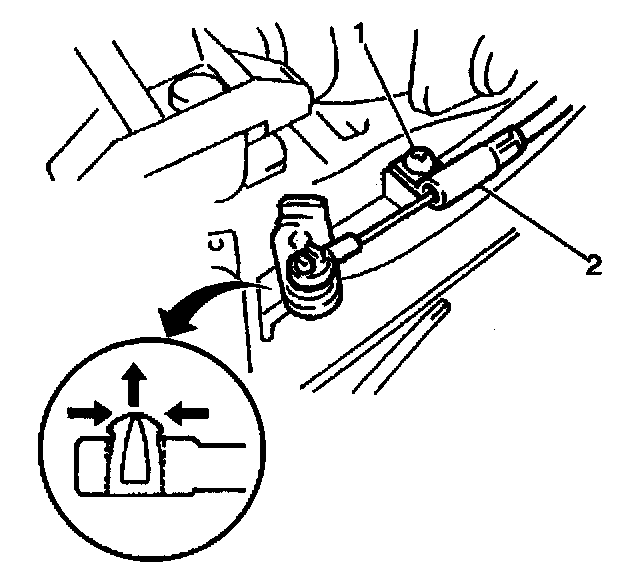

4. If the vehicle has an automatic transmission, remove the screw (1) from the automatic transmission park lock cable. Disconnect the automatic transmission park lock cable from the steering column lock and ignition switch cylinder.
5. Remove the steering column lock bolts using a center punch.
6. Turn the key to the ACC position or to the ON position.
7. Remove the steering column lock and ignition switch cylinder from the steering column.

INSTALLATION PROCEDURE

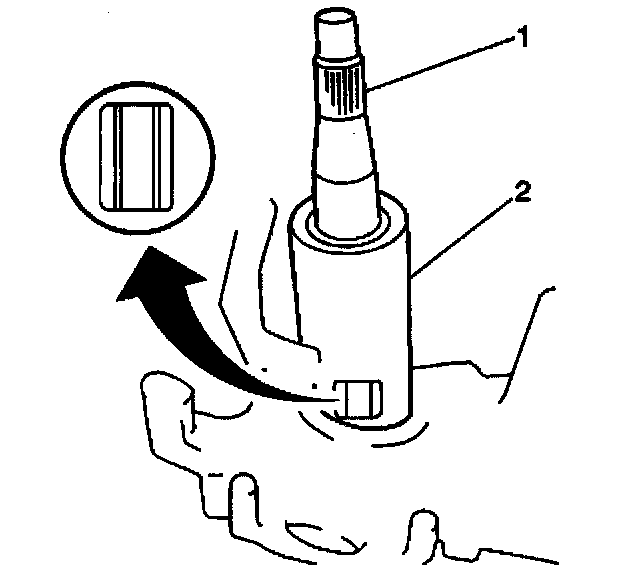

1. Position the steering shaft hole (1) in the center of the steering column jacket hole (2).
2. Turn the key to the ACC position or to the ON position.
3. Position the steering column lock and ignition switch cylinder on the steering column.
4. Turn the key to the LOCK position.
5. Remove the key.
6. Ensure the hub on the lock is aligned with the hole (1) in the steering shaft.
7. Rotate the steering shaft in order to ensure the steering shaft locks.

NOTICE: Refer to Fastener Notice in Service Precautions.





8. Secure the steering column lock and ignition switch cylinder to the steering column with 2 new steering column lock bolts.

^ Tighten the bolts until the heads break off.

9. Turn the key to the ACC position or to the ON position.
10. Rotate the shaft in order to ensure smooth rotation.
11. Turn the key to the LOCK position.
12. Rotate the steering shaft in order to ensure the steering shaft locks.





13. If the vehicle has an automatic transmission, connect the automatic transmission park lock cable to the steering column lock and ignition switch cylinder. Secure the automatic transmission park lock cable with the screw (1).

^ Tighten the screw to 2.2 Nm (19.5 inch lbs.).

14. Connect the ignition switch connector.
15. Install the steering column trim covers.
16. Enable the SIR System.
