M41 4-Speed Automatic Transmission

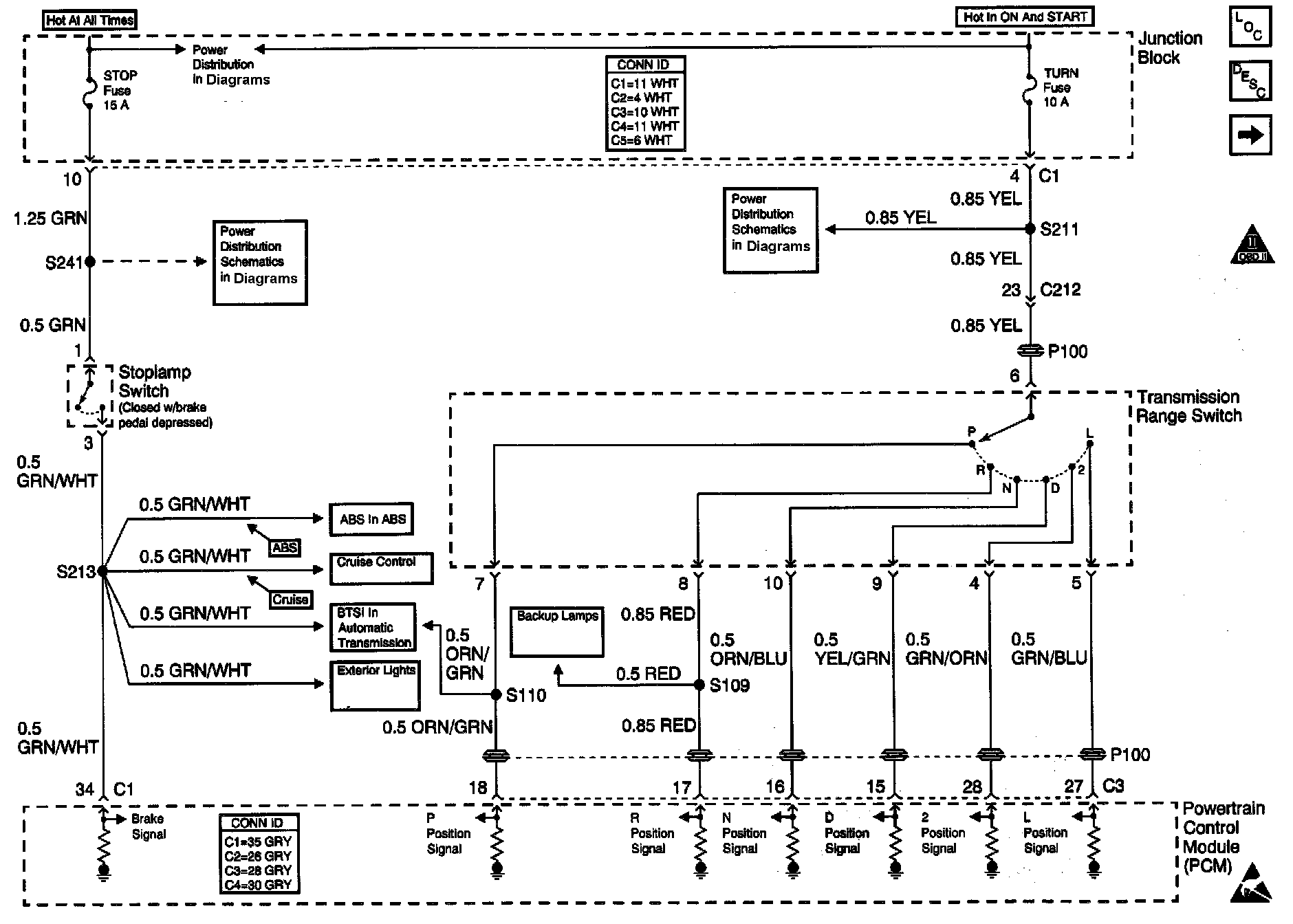

(Transmission Range Switch)

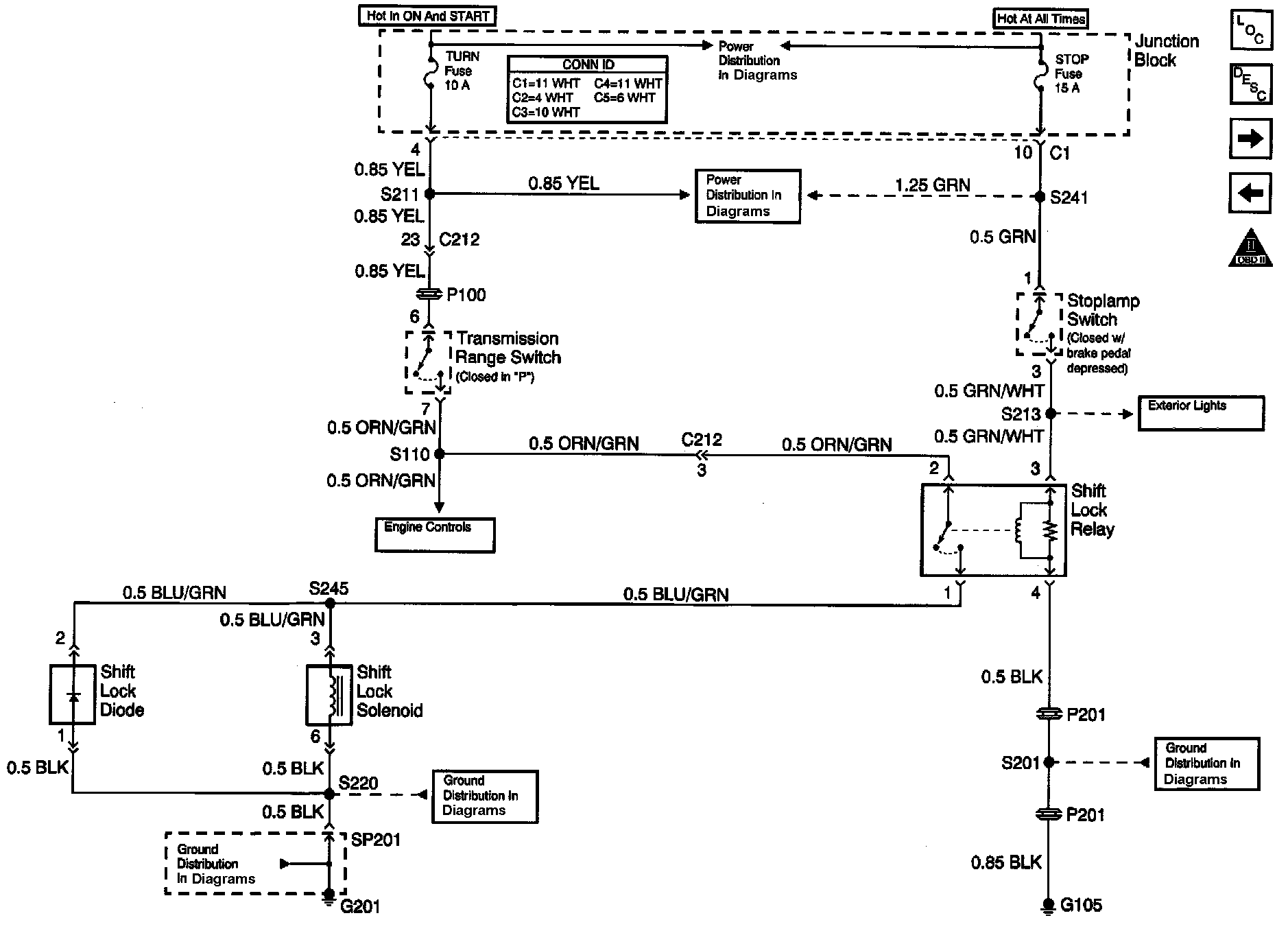

(Shift Lock Control)

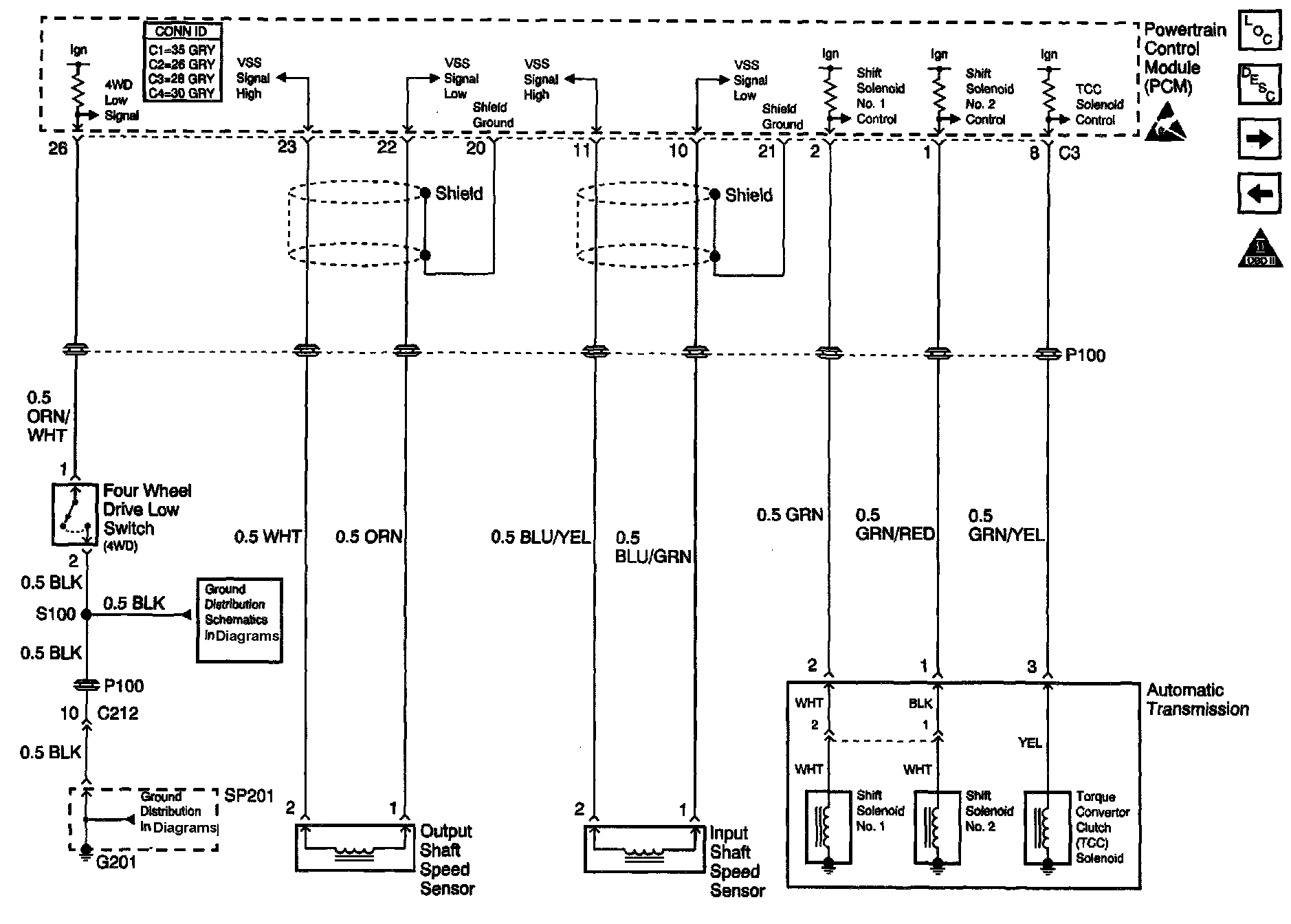

(Shift Solenoid and Speed Sensor)






Overdrive Switch and Shift Program Switch)
