Idle Speed/Throttle Actuator - Electronic: Service and Repair

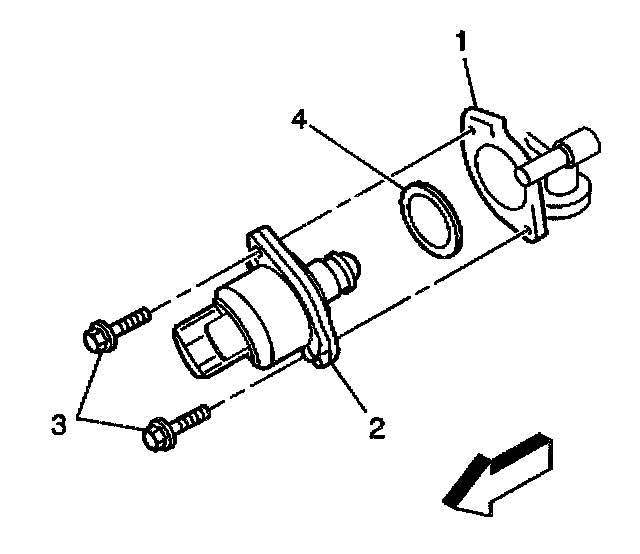

REMOVAL PROCEDURE
1. Remove the electrical connector from the idle air control (IAC) valve.
2. Remove both attaching bolts (3).
3. Remove the IAC valve(2).

INSTALLATION PROCEDURE
1. Install a new O-ring (4).
2. Install the IAC valve (2).

NOTE: Refer to Fastener Notice in Cautions and Notices.

3. Tighten both attaching bolts (3).

Tighten
Tighten the bolts to 3.5 N.m (30 lb in).

4. Reconnect electrical connector.
