Power Distribution Schematics: HAZ, D/I, TAIL, STOP and DOME Fuses:

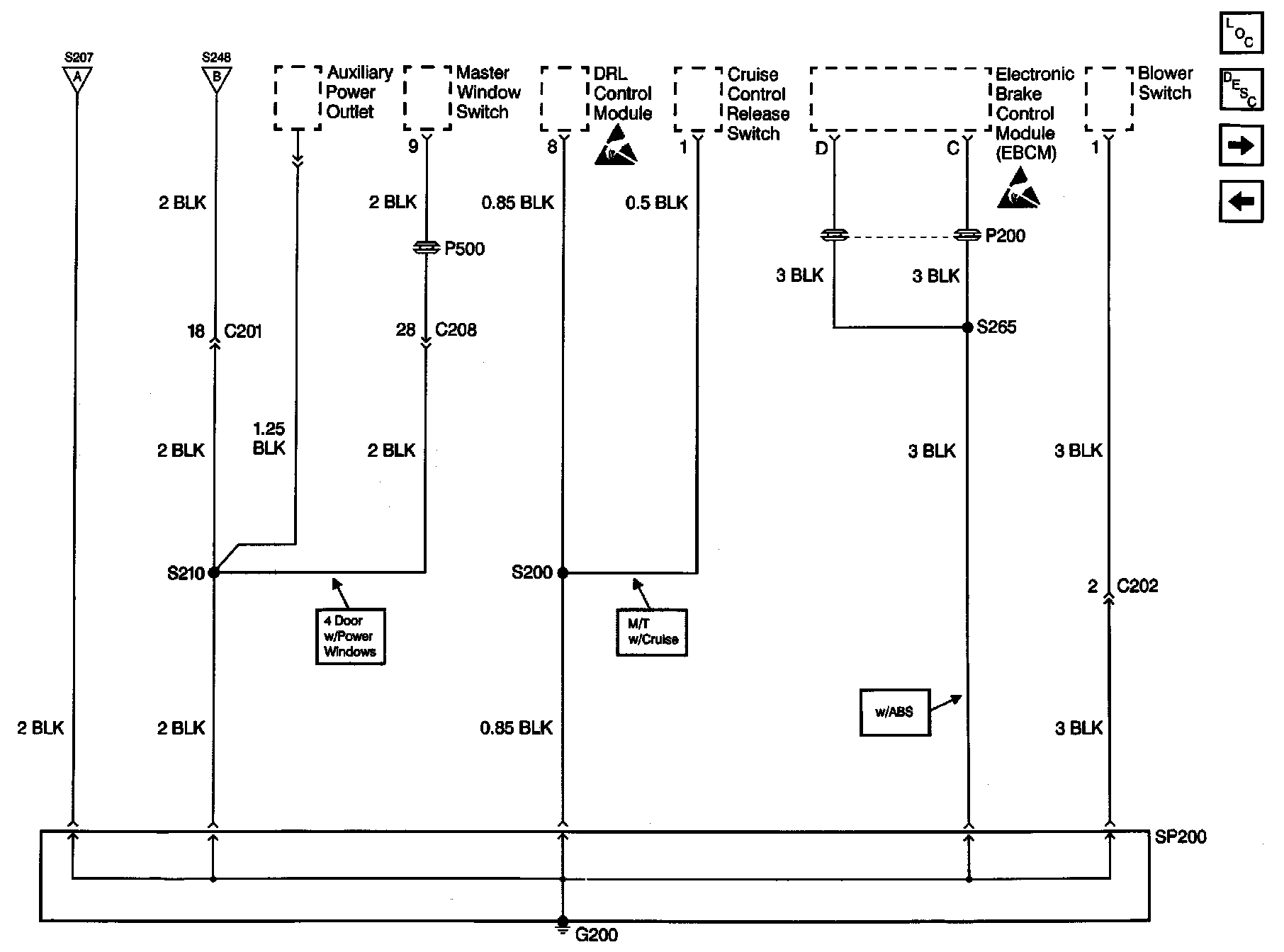

Ground Distribution Schematics: G200 (Part 1 Of 2):
