Instrument Panel Cluster (IPC) - Replacement

Instrument Cluster Replacement

Removal Procedure





Caution: Refer to Battery Disconnect Caution in Cautions and Notices.
1. Disconnect the negative battery cable.
2. Remove the IP cluster trim plate. Refer to Instrument Panel Cluster Trim Plate Bezel Replacement (Instrument Panel Cluster (IPC) - Trim Plate Bezel Replacement) .

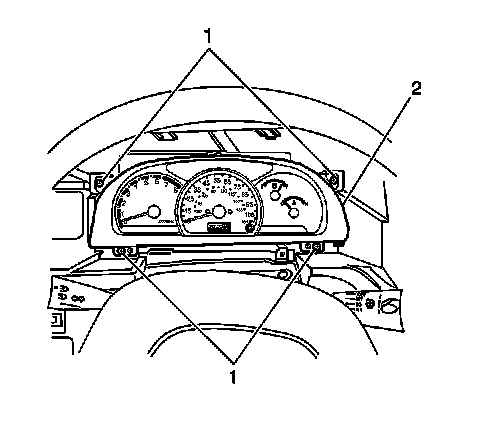

3. Remove the 4 screws (1) which secure the instrument cluster (2).

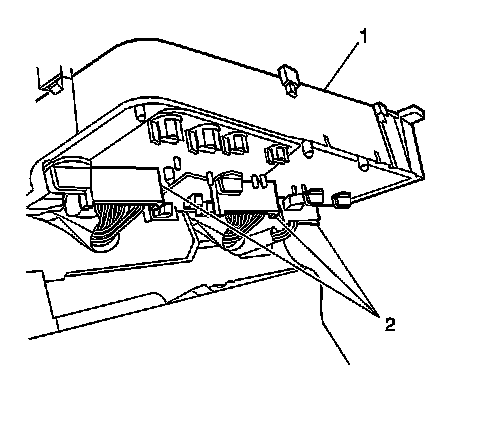

4. Pull the cluster (1) forward in order to gain access to the electrical connectors (2).
5. Disconnect the 3 instrument cluster electrical connectors (2).
6. Remove the instrument cluster (1) from the vehicle.



Installation Procedure





1. Connect the 3 instrument cluster electrical connectors (2).




2. Install the instrument cluster (2) to the instrument panel. Secure the cluster with the 4 screws (1).
3. Install the IP cluster trim plate. Refer to Instrument Panel Cluster Trim Plate Bezel Replacement (Instrument Panel Cluster (IPC) - Trim Plate Bezel Replacement) .
4. Connect the negative battery cable.
