Home >> Chevy Truck >> 2000 >> Tracker 2WD L4-2.0L VIN C >> Repair and Diagnosis >> Heating and Air Conditioning >> Testing and Inspection >> Symptom Related Diagnostic Procedures >> Symptoms - HVAC System - Manual >> Compressor Clutch Does Not Engage

Compressor Clutch Does Not Engage

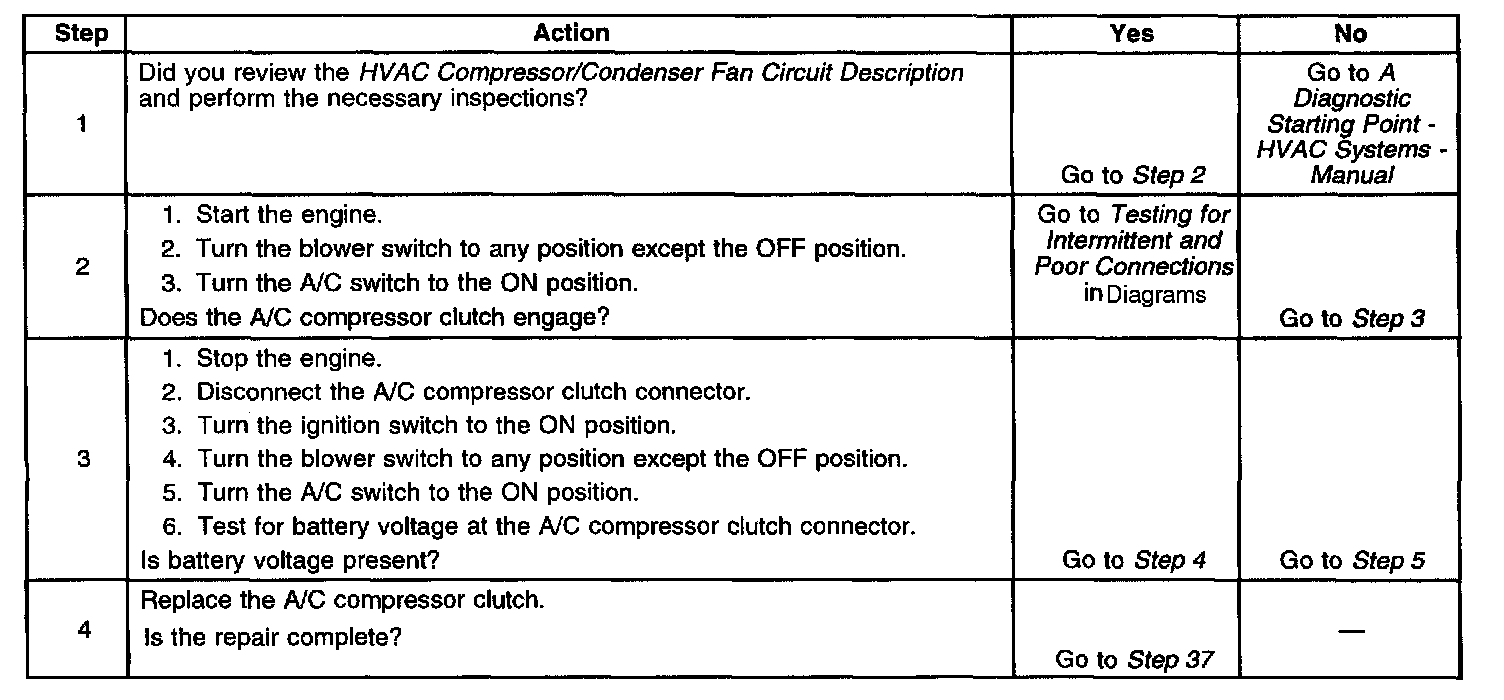

Steps 1-4:




Steps 6-18:

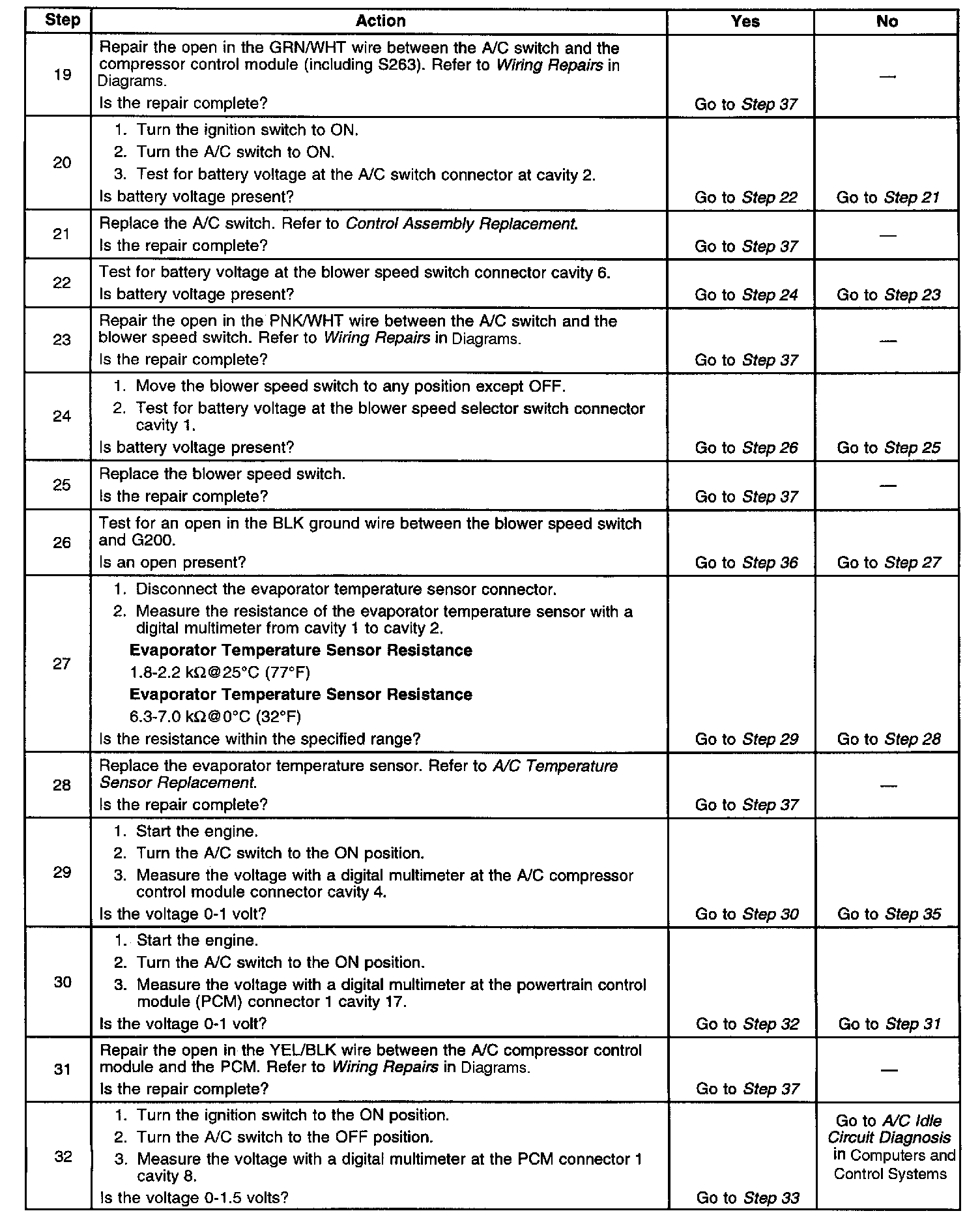

Steps 19-32:

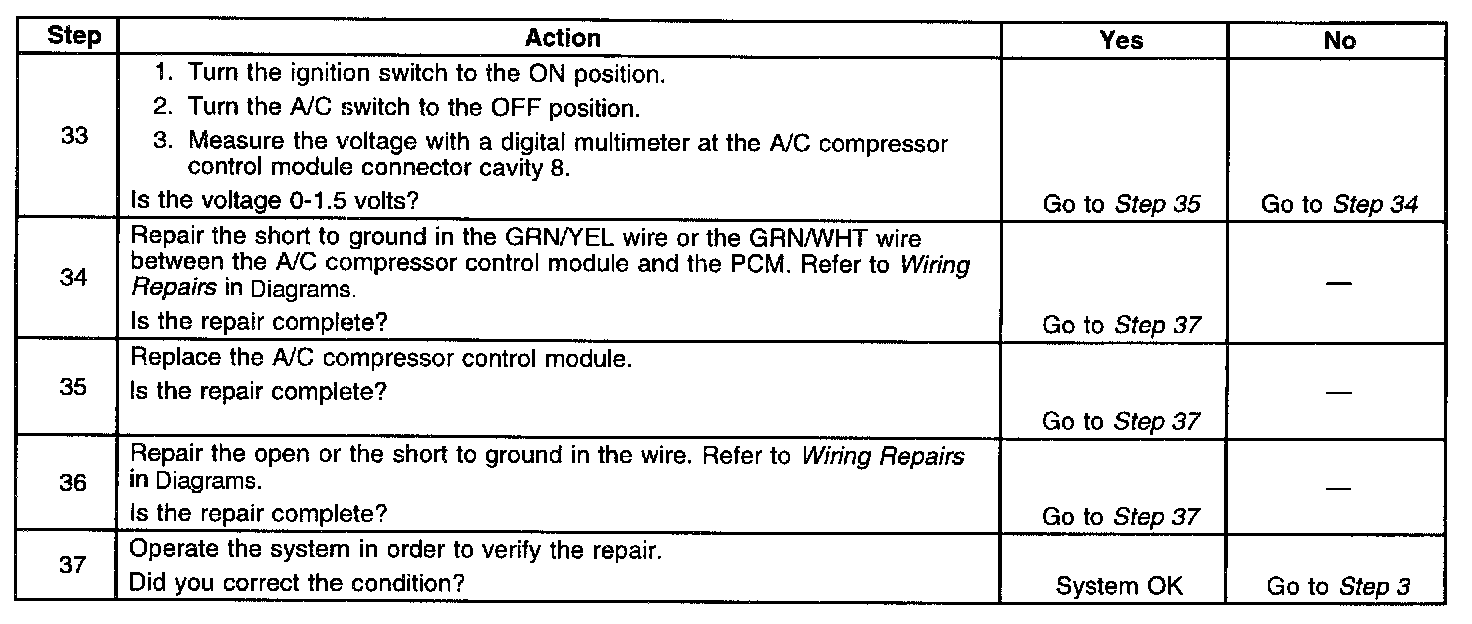

Steps 33-37:
