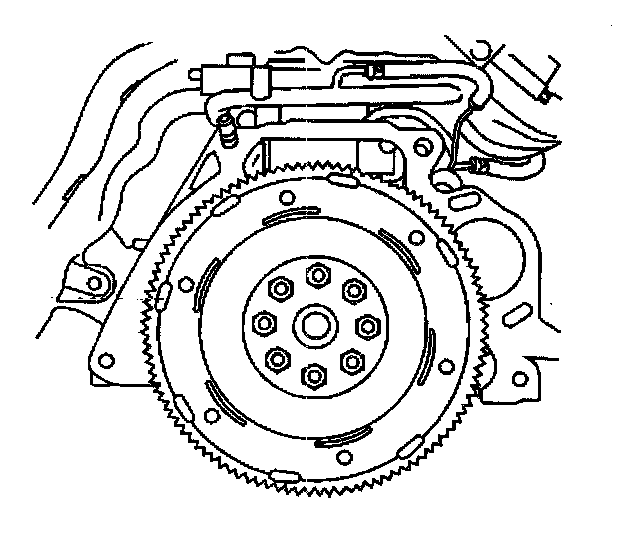

2. Engine Flywheel Removal

^ Tools Required
- J35271 Flywheel Holder





1. Mark the flywheel-to-engine position.
2. Lock the flywheel in place with the J35271.
3. Remove the 8 flywheel retaining bolts.
4. Remove the flywheel from the crankshaft.
5. Inspect the clutch pilot bushing. Replace if necessary. Refer to Pilot Bearing Replacement.
6. Clean the grease and dirt from the flywheel outer surfaces using a suitable solvent.
