18. Oil Pump Removal

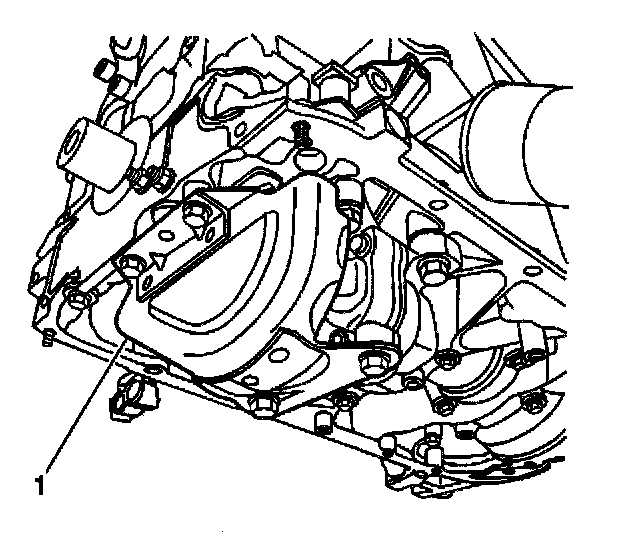

1. Remove the 4 bolts and the oil pump drive chain cover (1).

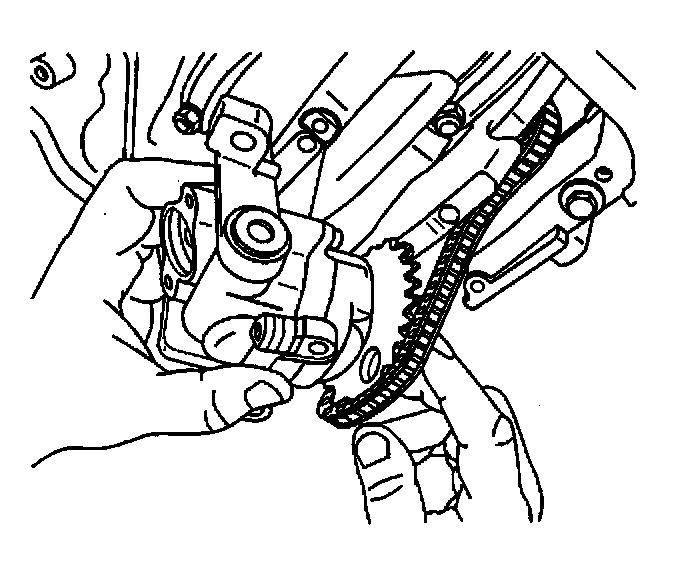

2. Remove the 3 bolts and the oil pump.
3. If necessary, remove the oil pump chain guide. The chain tension will have to be adjusted if the guide is removed or if the chain is replaced.
