Engine Compartment Fan: Service and Repair

Removal Procedure

Caution: Refer to Battery Disconnect Caution in Service Precautions.

1. Disconnect the negative battery cable.

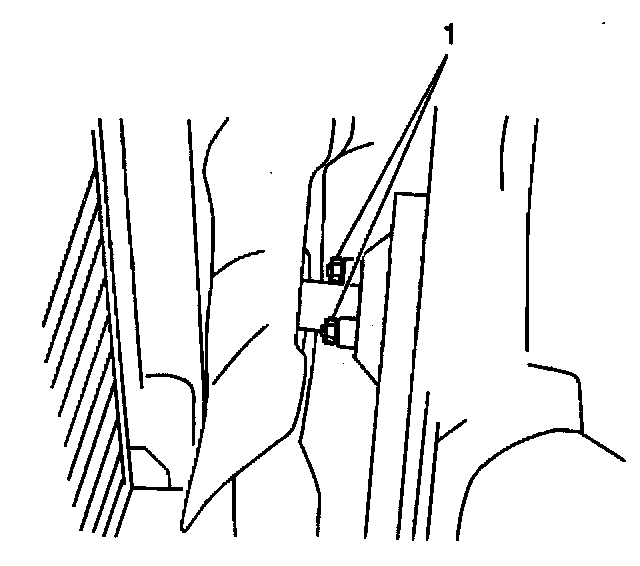

2. Remove the 4 fan nuts (1).





3. Remove the 4 radiator shroud clips.
4. Detach the power steering reservoir and reposition it aside.

Important: Do not damage the radiator when removing the fan.

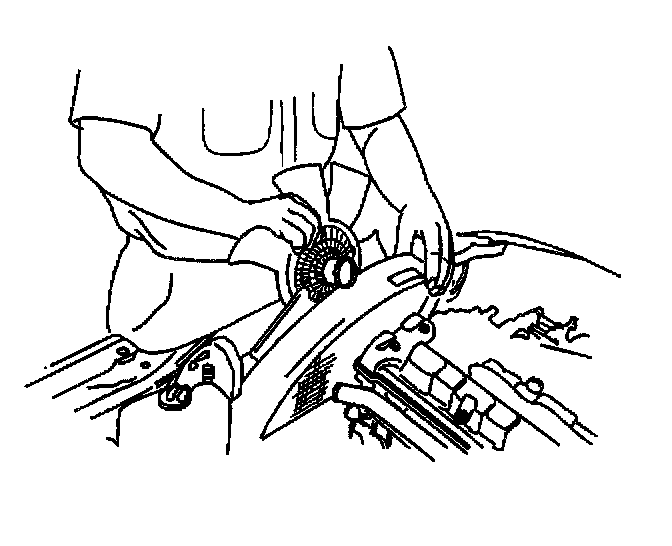

5. Lean the shroud toward the engine.
6. Detach the fan from the pulley hub and remove the fan/clutch assembly.

Installation Procedure
1. Install the fan/clutch assembly to the vehicle.
2. Install the shroud and secure with the 4 clips.





3. Reposition and attach the power steering reservoir to the power steering reservoir bracket.





4. Install the fan/clutch assembly to the pulley hub.

Notice: Refer to Fastener Notice in Service Precautions.

5. Install the 4 fan nuts. Use a second wrench to hold the fan shaft.
^ Tighten the fan nuts to 11 Nm (97 inch lbs.)
6. Connect the negative battery cable.
^ Tighten the battery cable bolt to 15 Nm (11 ft. lbs.)
