Power, Ground, Park Brake Switch, Generator

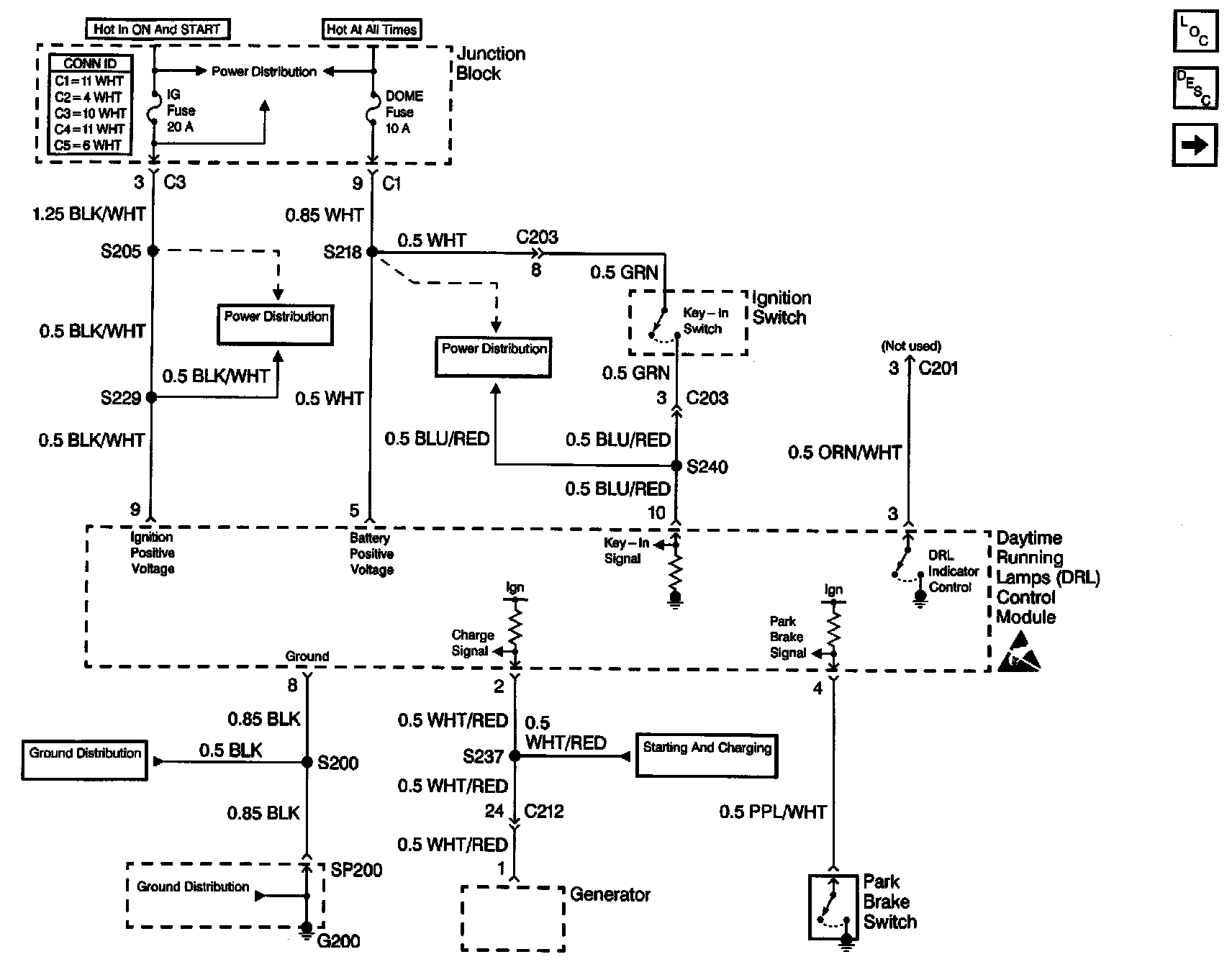

Headlights/Daytime Running Lights: Power, Ground, Park Rake Switch, Generator:
