Ambient Light Sensor, Turn Signal/Headlamp SW, Headlamp Relay
Ambient Light Sensor, Turn Signal/Headlamp SW, Headlamp Relay

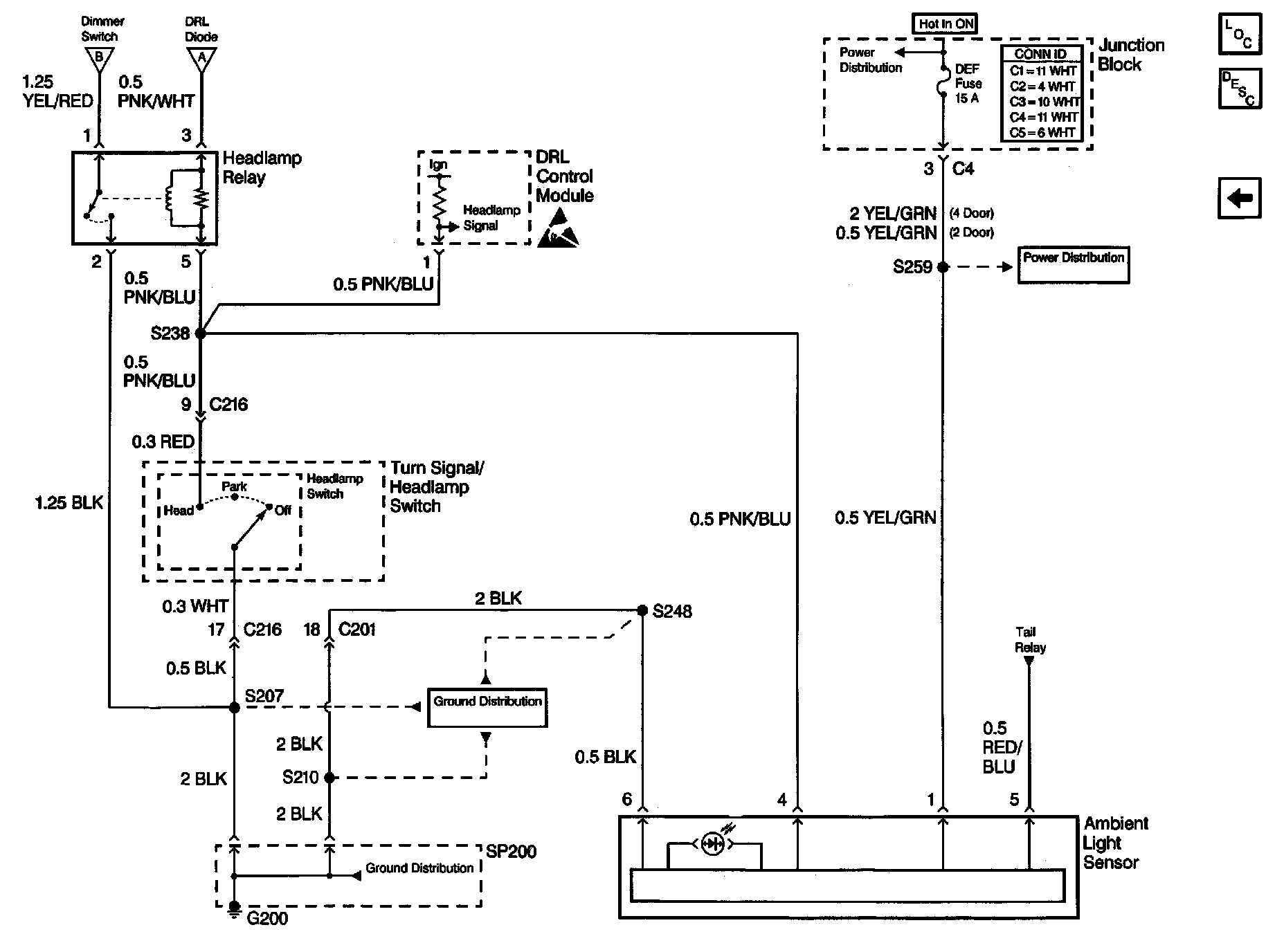

Headlights/Daytime Running Lights (DRL) Schematics: Ambient Light Sensor, Turn Signal/Headlamp Switch, Headlamp Relay:
