Home >> Chevy Truck >> 2000 >> Tracker 2WD L4-2.0L VIN C >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Lighting and Horns >> System Diagram >> Exterior Lights >> Turn Switch and Lamps

Turn Switch and Lamps

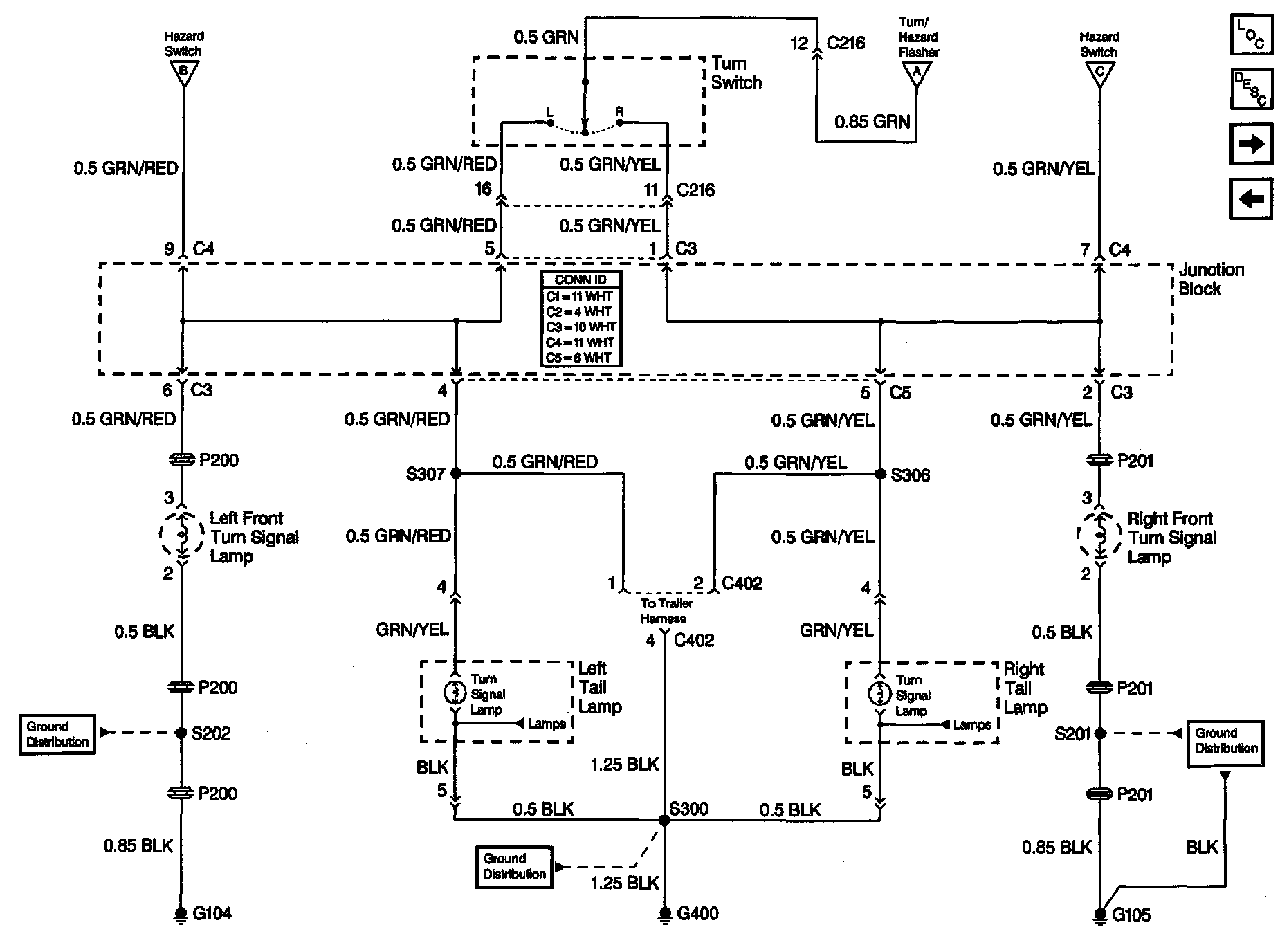

Exterior Lights Schematics: Turn Switch And Lamps:
