FREE REPAIR MANUALS & LABOR GUIDES 1982-2013 Vehicles
Courtesy of Operation CHARM
:
Car repair manuals for everyone.
Home
>>
Chevy Truck
>>
2000
>>
Tracker 2WD L4-2.0L VIN C
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Instrument Panel, Gauges and Warning Indicators
>>
System Diagram
>>
Audible Warning Schematics
>>
Multifunction Alarm and Seat Belt/Jamb Switches
Multifunction Alarm and Seat Belt/Jamb Switches

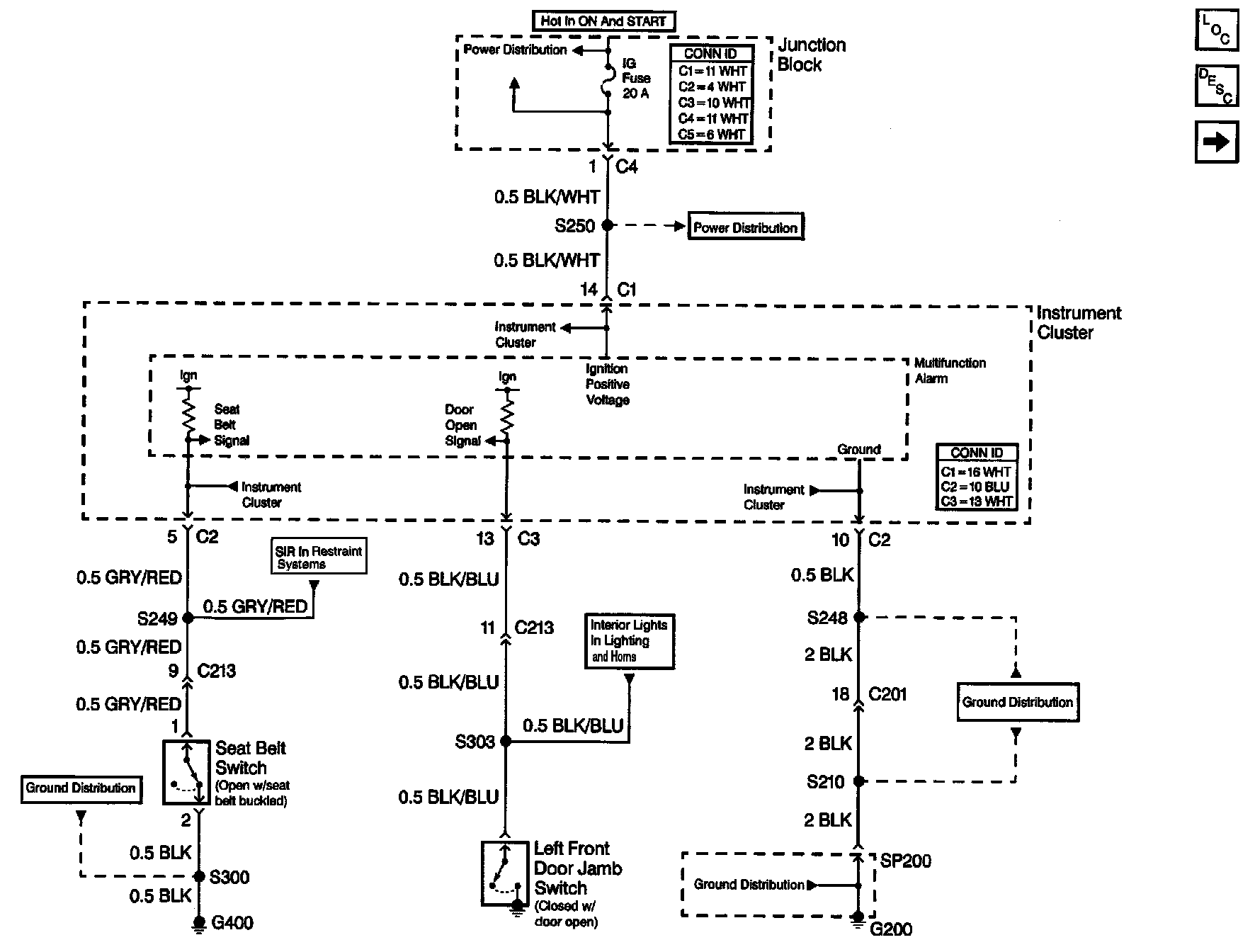

Audible Warnings Schematics: Multifunction Alarm And Seat Belt/Jamb Switches:
