Cruise Indicator, Main Cruise Control and Mode Switch

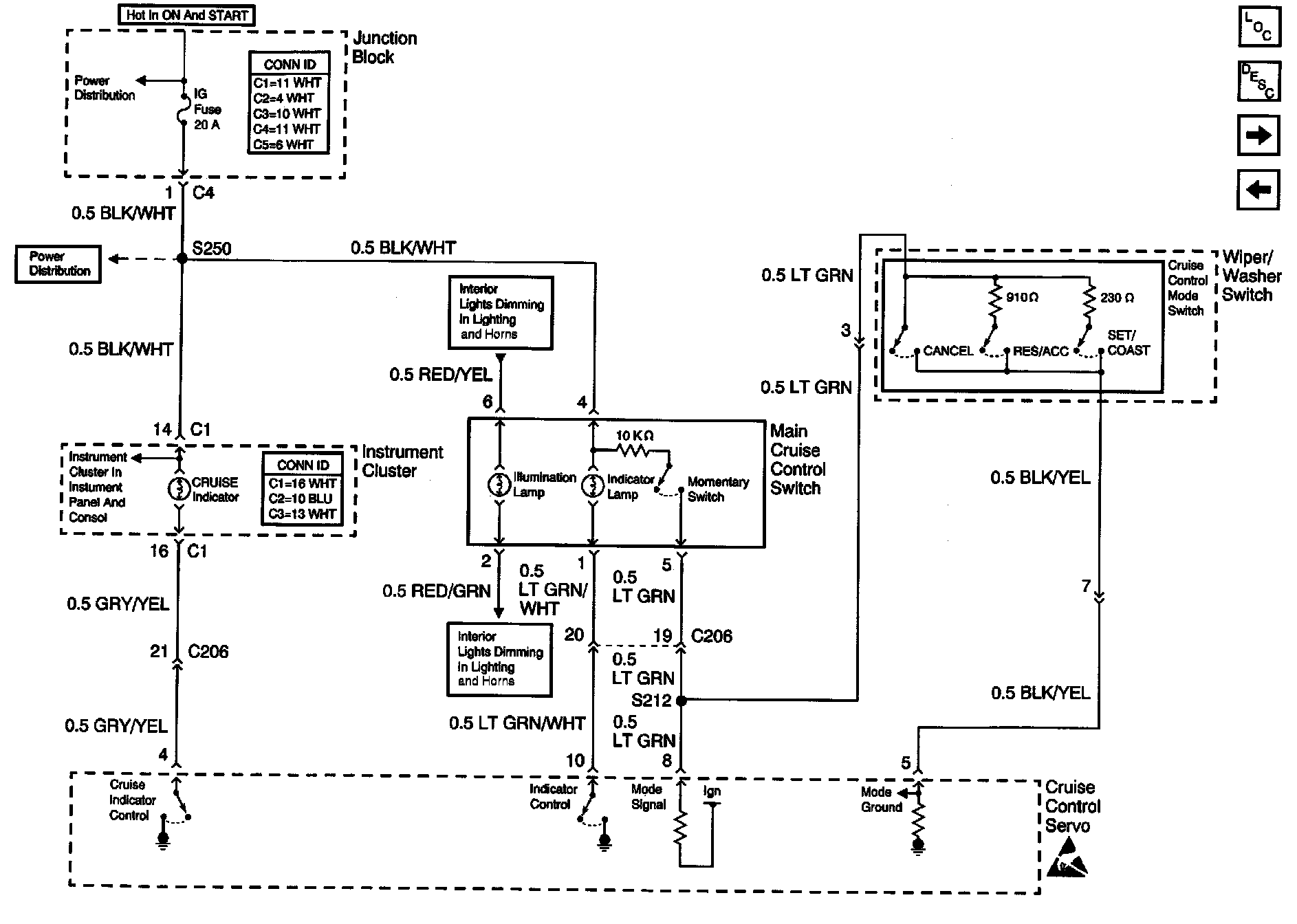

Cruise Control Schematics: Clutch Indicator, Main Cruise Control And Mode Switch:
