C304

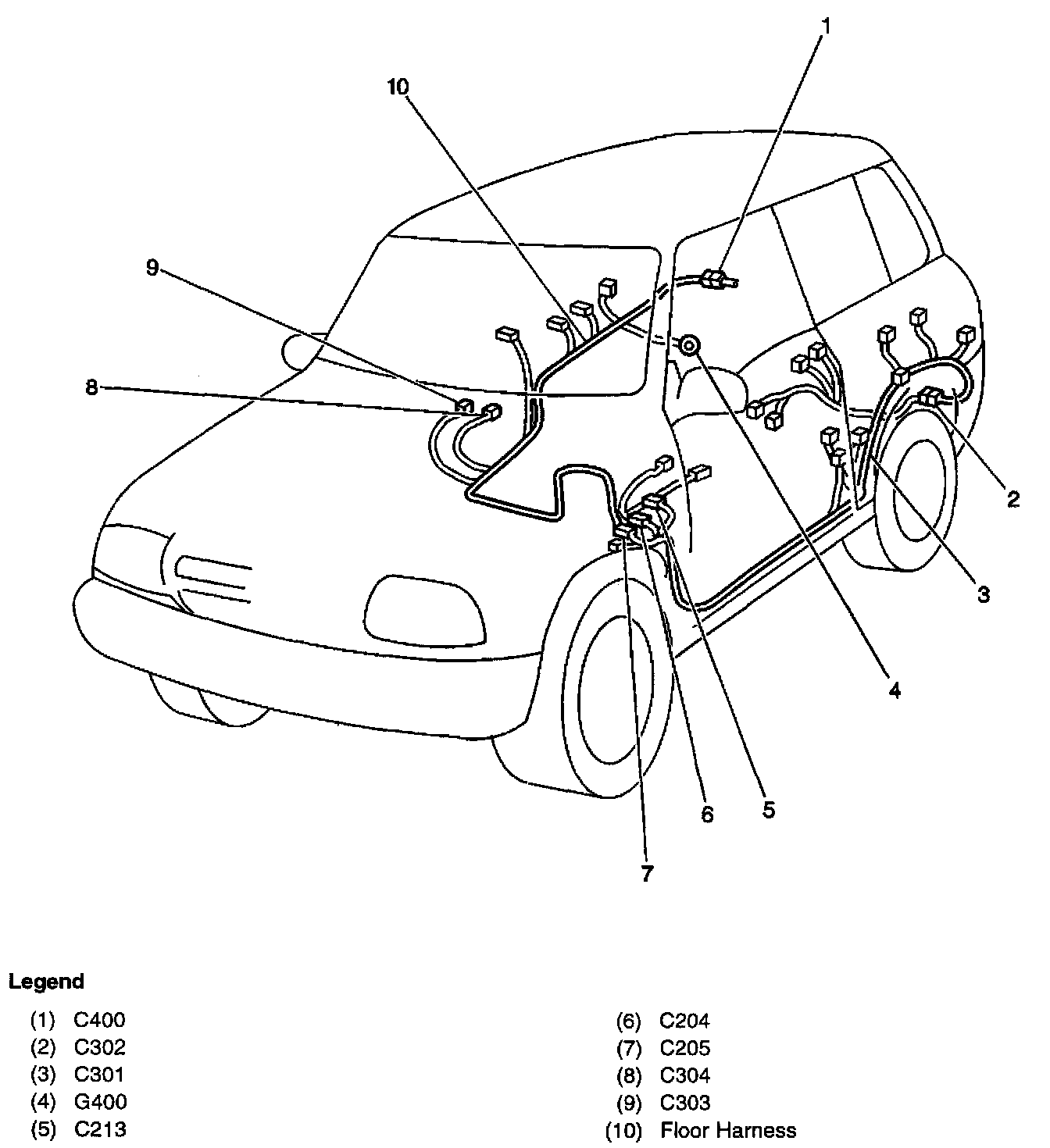

Locations View:




Floor harness to the right rear door harness in the right side center pillar
Floor harness to the right front door harness in the right side center pillar
