C215

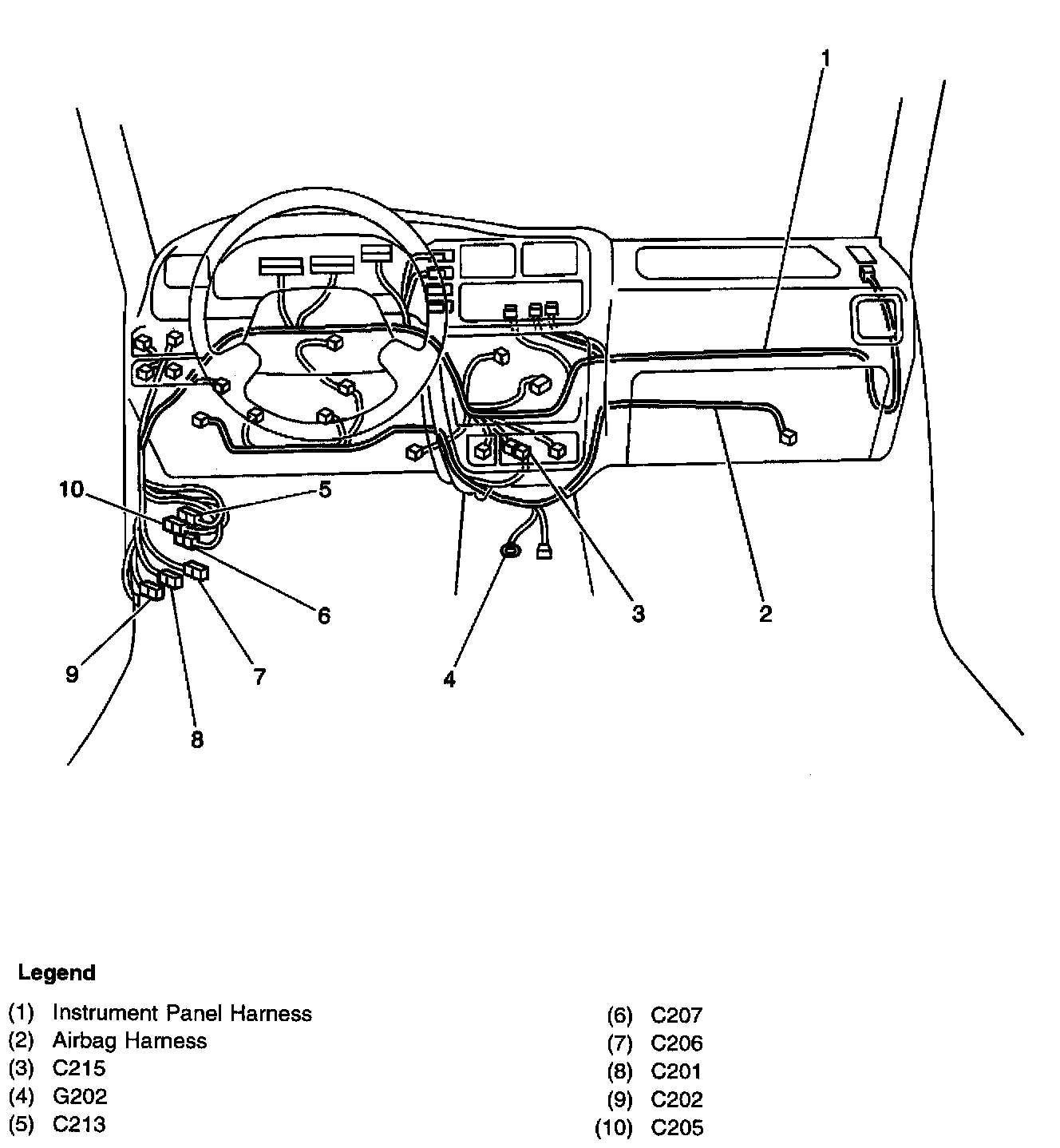

Locations View:




I.P harness to the Restraint Systems harness rear center of the instrument panel
