C103
C103

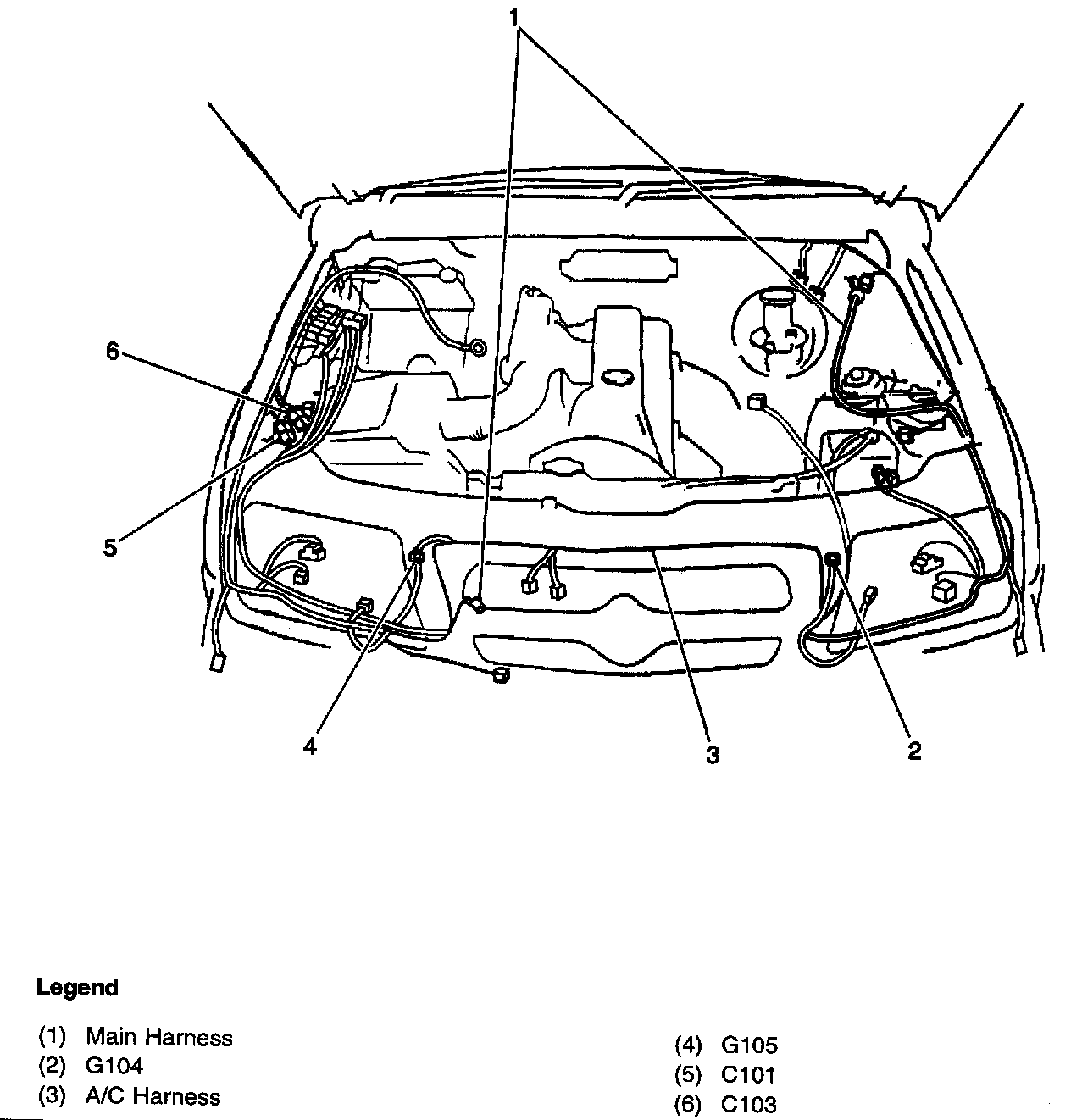

Locations View:
A/C harness to the main harness on the right front fender panel, below the fuse block
