Home >> Chevy Truck >> 2000 >> Tracker 2WD L4-2.0L VIN C >> Repair and Diagnosis >> Diagrams >> Components >> Modules >> Daytime Running Lamps (DRL) Control Module

Daytime Running Lamps (DRL) Control Module

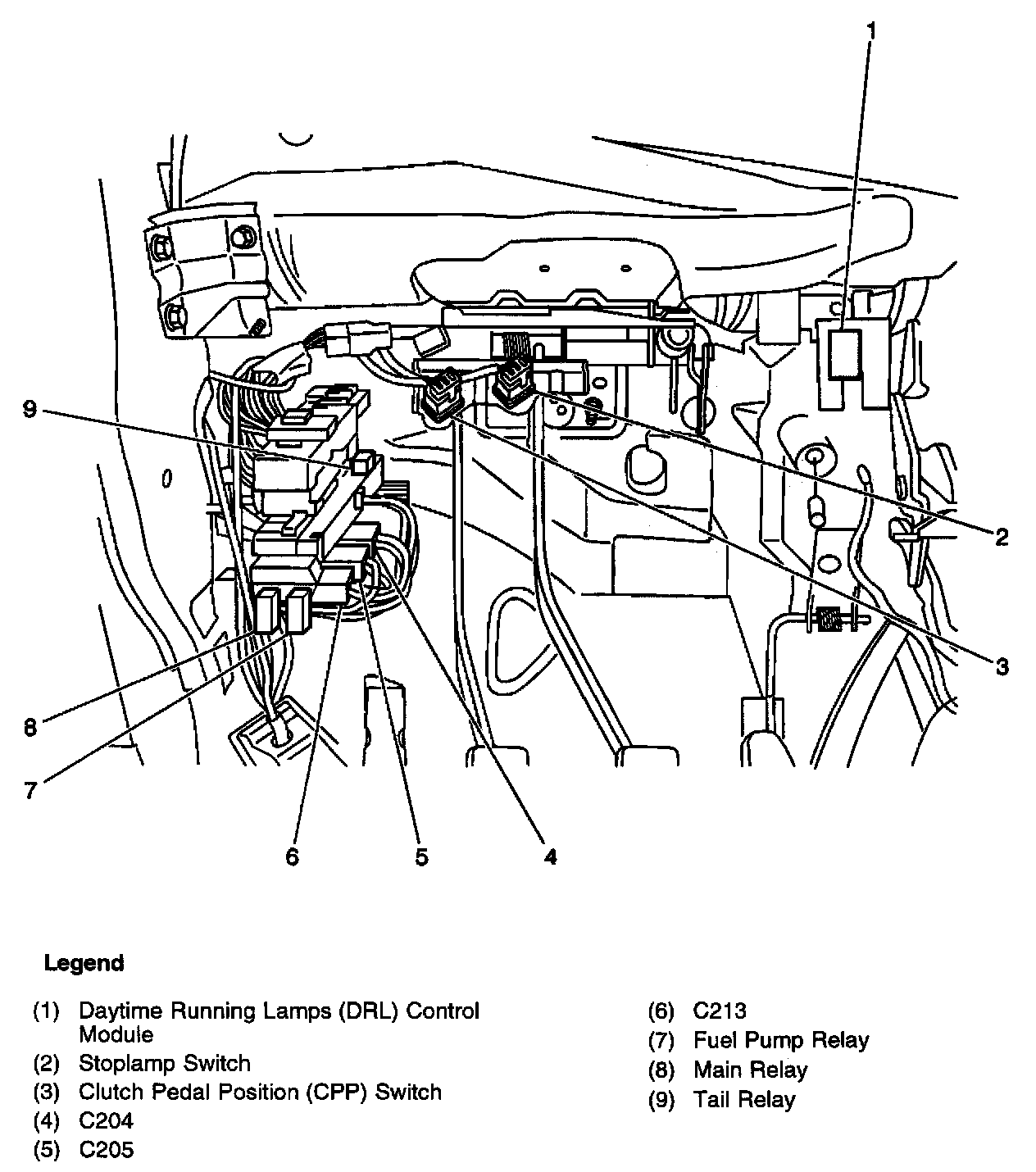

Locations View:

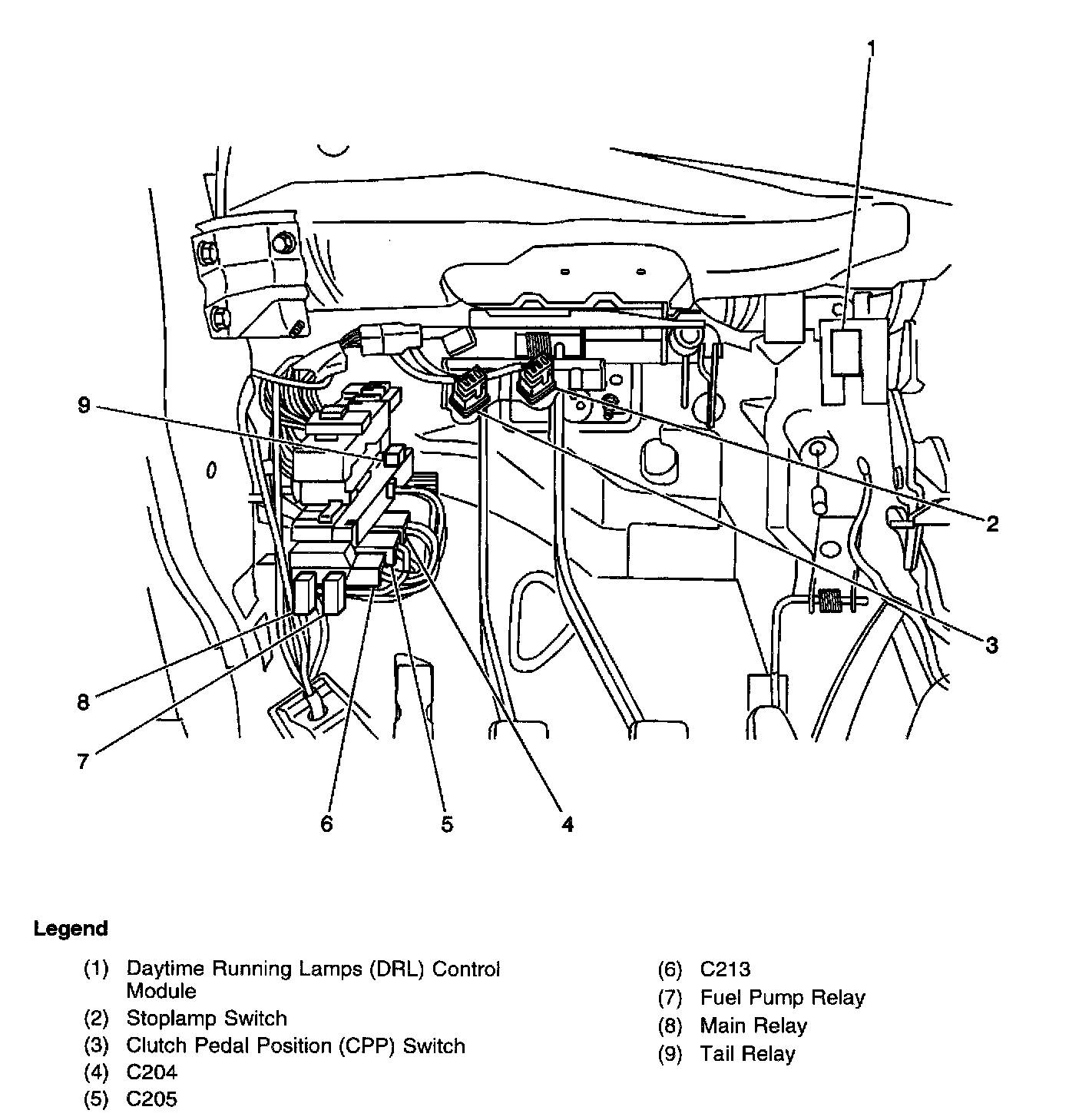

Locations View:




Locations View:




Behind the top of the instrument panel to the right of the steering wheel column
