Manual Mirror Replacement

Manual Mirror Replacement

Removal Procedure





1. Gently pry the outside rearview mirror opening cover (2) from the front side door.

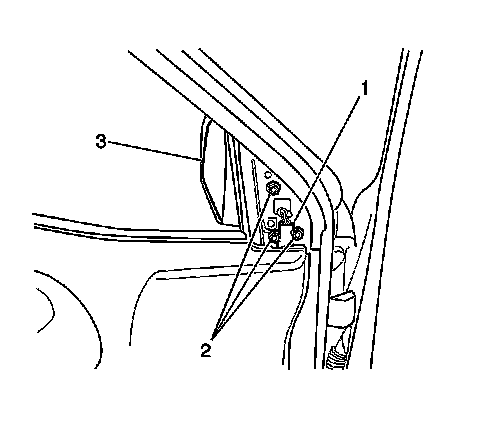

2. Remove the 3 bolts (2) and outside rearview mirror (3) from the door.



Installation Procedure






Notice: Refer to Fastener Notice in Cautions and Notices.

1. Install the outside rearview mirror (3) to the front side door. Secure the mirror with the 3 bolts.

Tighten the outside rearview mirror bolts to 10 N.m (89 lb in).





2. Install the outside rearview mirror opening cover (2) to the door. Ensure that the plastic retainers are fully engaged.
