Instrument Panel Cluster (IPC) - Trim Plate Bezel Replacement

Instrument Panel Cluster Trim Plate Bezel Replacement

Removal Procedure

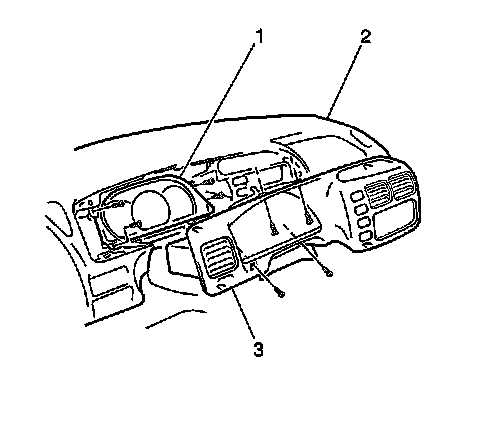

1. Remove the 4 screws which secure the IP cluster trim plate (3).
2. Using a taped flat bladed tool, gently pry the cluster trim plate (3) loose.
3. Remove the cluster trim plate (3) from the instrument panel (2).



Installation Procedure





1. Install the IP cluster trim plate (3) to the instrument panel (2). Ensure that the retaining clips are fully engaged.
2. Install the 4 screws which secure the cluster trim plate (3).
