Instrument Panel (IP) - Trim Panel Replacement - Left

Instrument Panel Trim Panel Replacement - Left Side

Removal Procedure

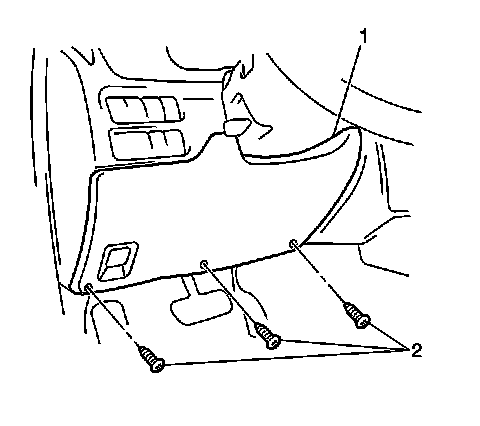

Remove the following components from the instrument panel:

1. The 3 screws (2)
2. The IP steering column opening trim plate (1)



Installation Procedure





Install the IP steering column opening trim plate (1) to the instrument panel. Secure the trim plate with the 3 screws (2).
