Wiper Motor Cover Replacement

REMOVAL PROCEDURE




1. Remove the wiper arms.
2. Remove the air inlet grille panel.
3. Disconnect the electrical connector from the wiper motor.

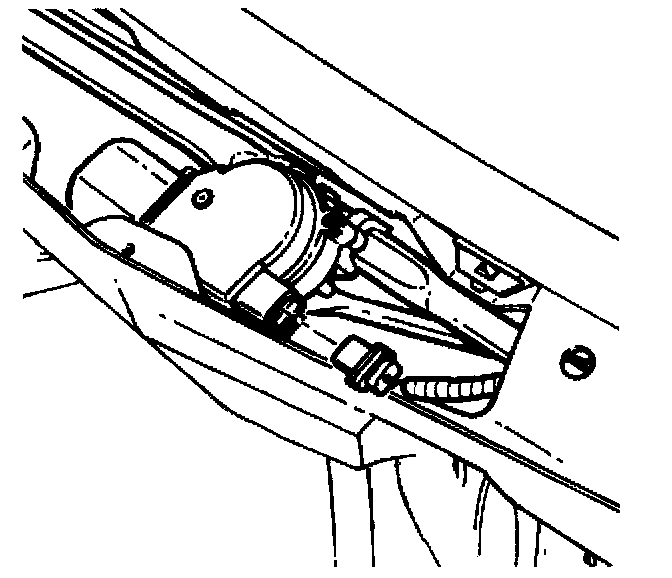

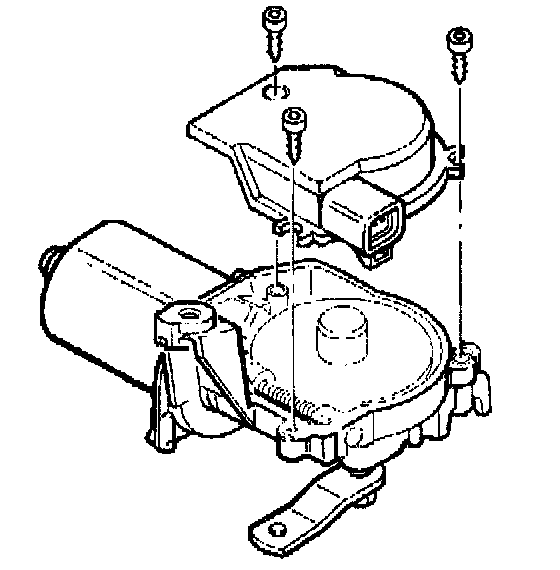

4. Remove the three screws and the wiper motor cover from the wiper motor.

INSTALLATION PROCEDURE

NOTE: Refer to Fastener Notice in Service Precautions.




1. Install the wiper motor cover onto the wiper motor with the three screws.

Tighten
Tighten the screws to 2.5 N.m (22 lb in).




2. Connect the electrical connector to the wiper motor.
3. Install the air inlet grille panel.
4. Install the wiper arms.
5. Operate the wipers and inspect for proper operation.
