Home >> Chevy Truck >> 2000 >> Express 1/2 Ton Van V8-305 5.0L VIN M SFI >> Repair and Diagnosis >> Wiper and Washer Systems >> Testing and Inspection >> Symptom Related Diagnostic Procedures >> Wipers Low Mode Inoperative - High Mode Operates

Wipers Low Mode Inoperative - High Mode Operates

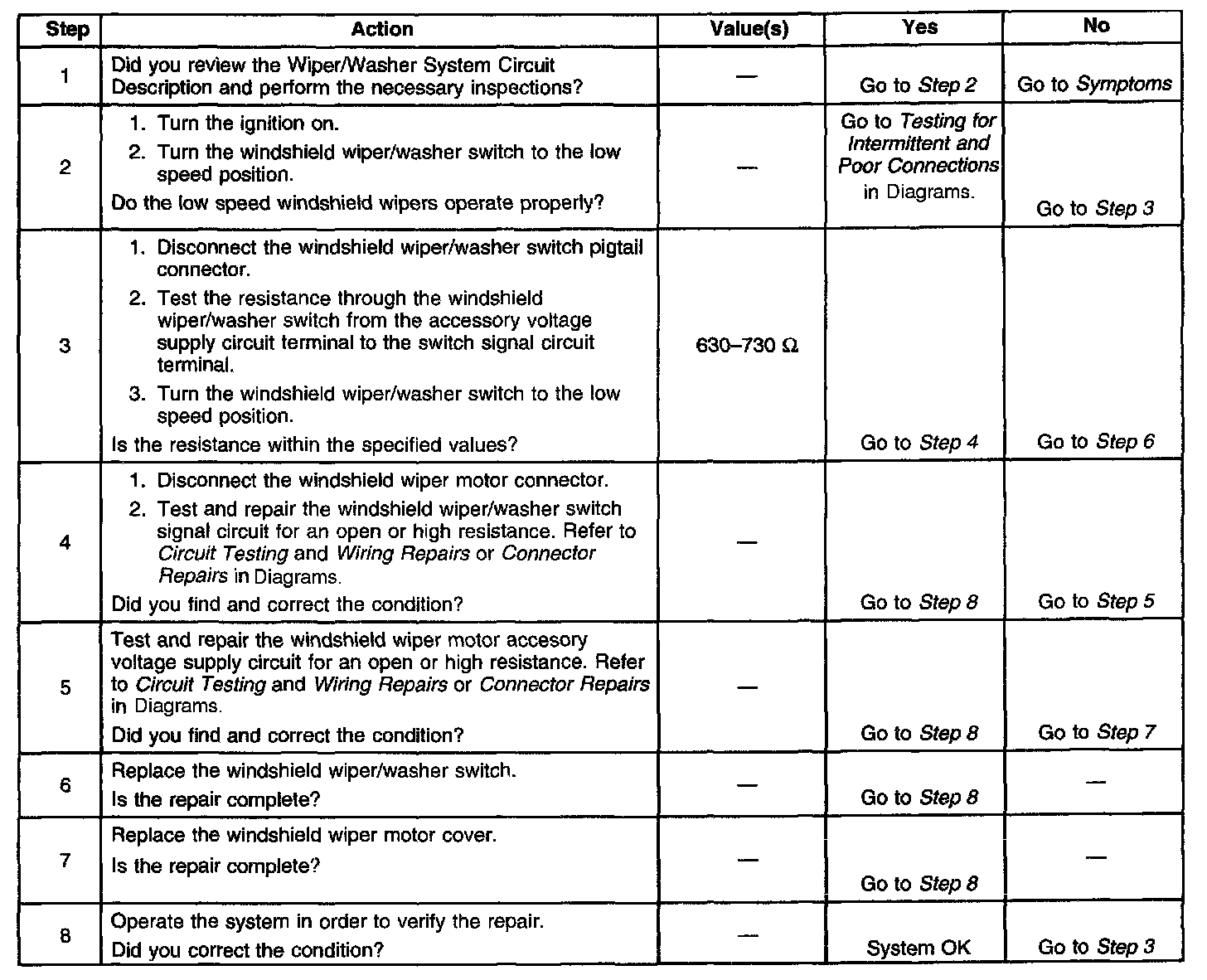

Diagnostic Chart:
