Chevy Truck
>>
2000
>>
Express 1/2 Ton Van V8-305 5.0L VIN M SFI
>>
Repair and Diagnosis
>>
Wiper and Washer Systems
>>
Testing and Inspection
>>
Symptom Related Diagnostic Procedures
>>
Wipers All Modes and Washer Inoperative
Wipers All Modes and Washer Inoperative

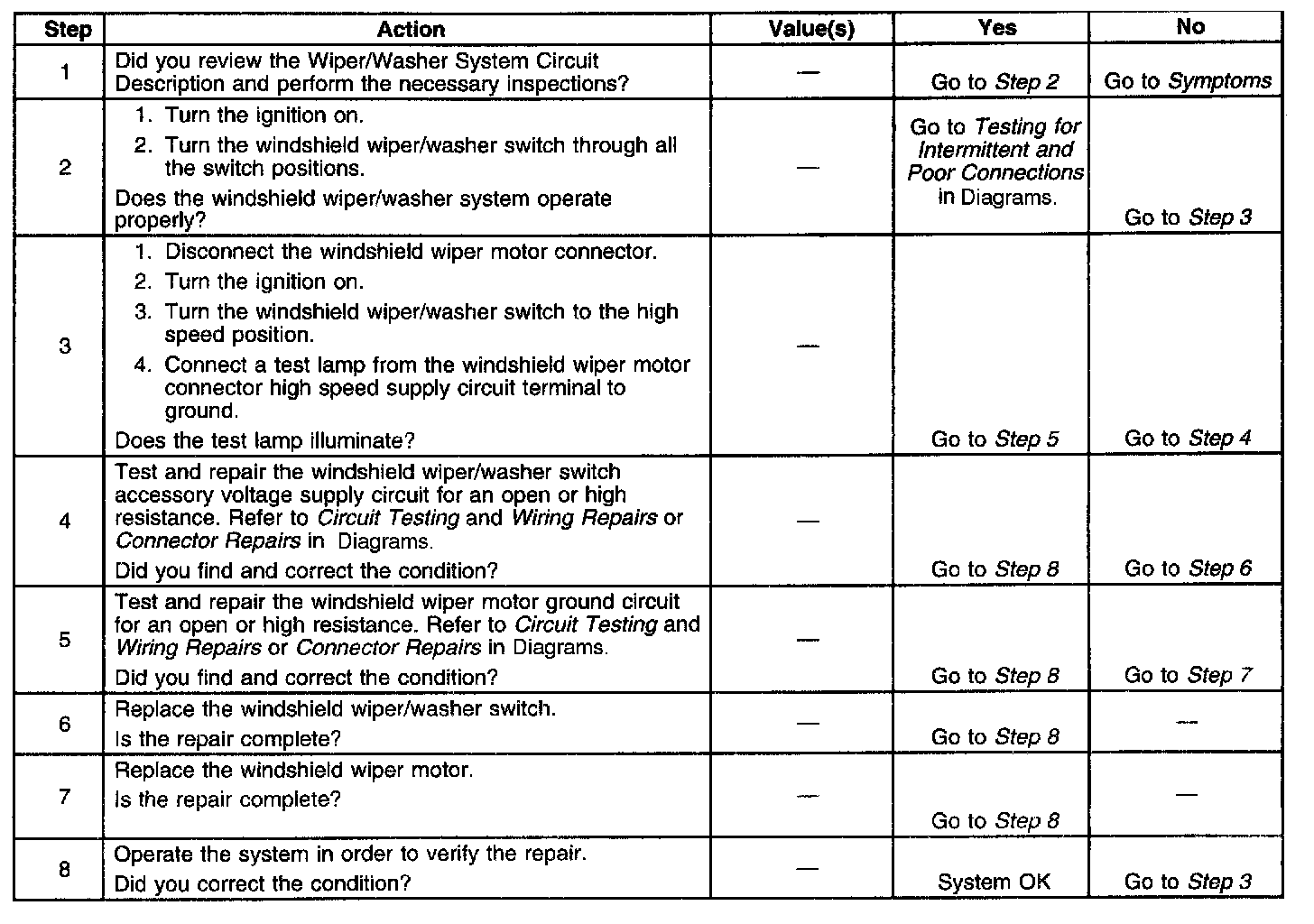

Diagnostic Chart:
