Home >> Chevy Truck >> 2000 >> Express 1/2 Ton Van V8-305 5.0L VIN M SFI >> Repair and Diagnosis >> Transmission and Drivetrain >> Sensors and Switches - Transmission and Drivetrain >> Sensors and Switches - A/T >> Fluid Pressure Sensor/Switch >> Diagrams >> Electrical Diagrams >> Transmission Switch Controls - 4L80-E

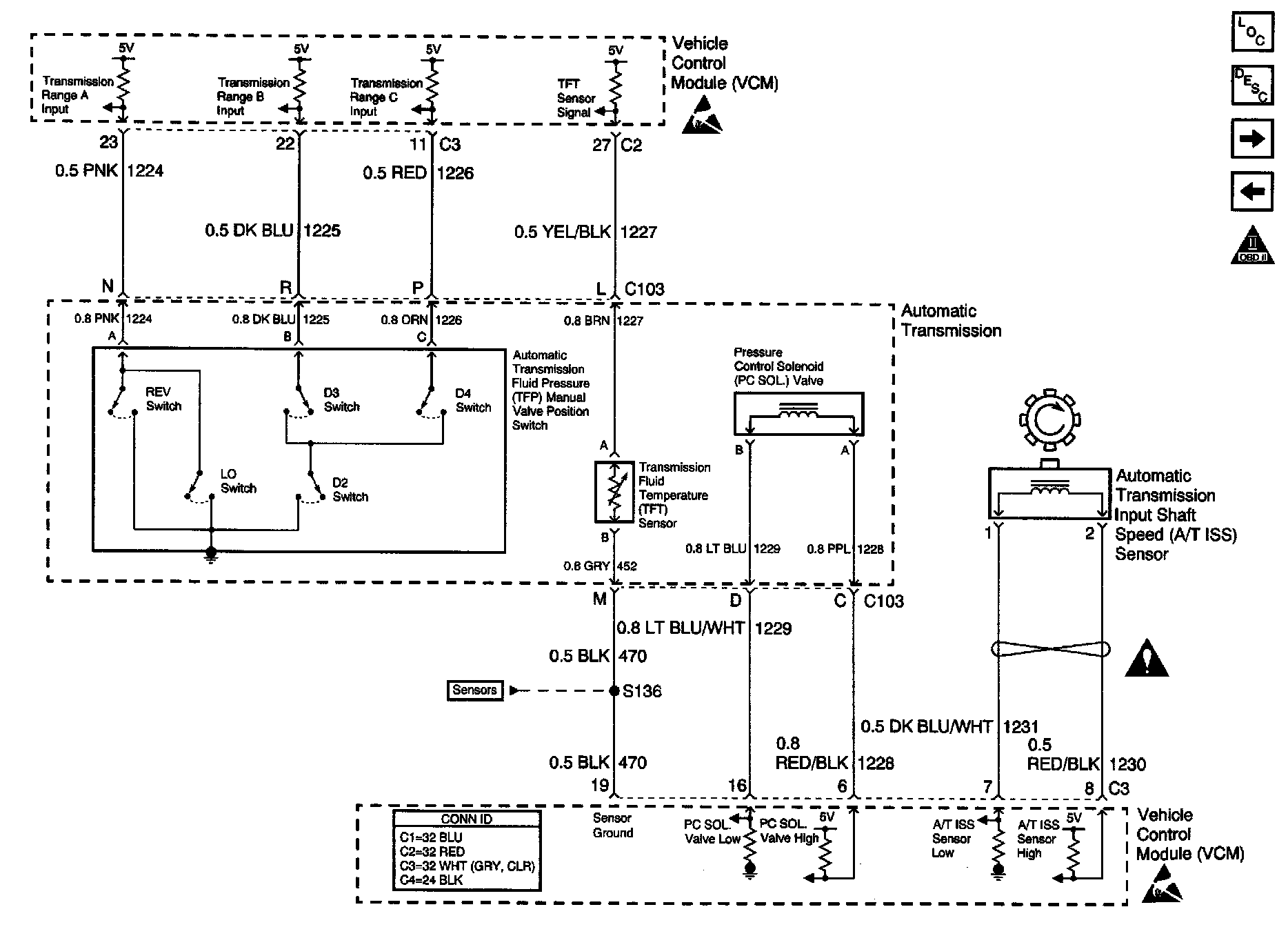

Transmission Switch Controls - 4L80-E

Engine Controls Schematics: Transmission Switch Controls:
