Connecting Rod Replacement

- Tools Required
- J24319-B Universal Steering Linkage Puller
- J29193 Steering Linkage Installer (12 mm)

Removal Procedure

Important: Use the proper tool in order to separate all the ball joints.

1. Raise the vehicle. Support the vehicle with suitable safety stands.

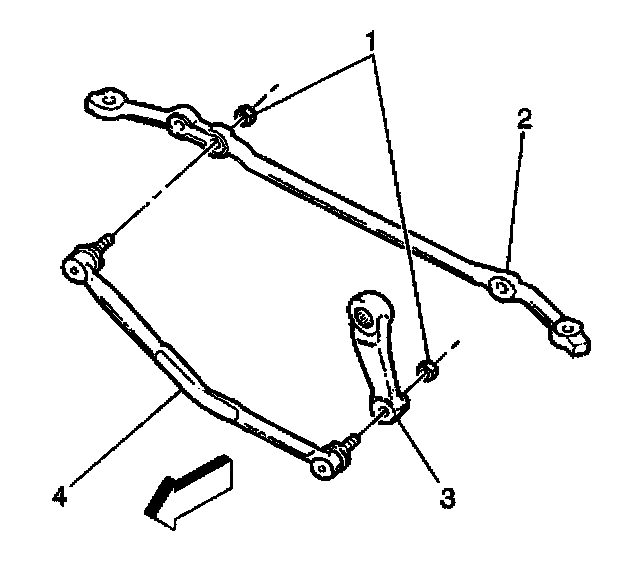

2. Remove the prevailing torque nut (1) from the relay rod (2) ball stud at the pitman arm. Discard the prevailing torque nut (1).





3. Use the J24319-B in order to remove the connecting rod (4) from the relay rod (2).
4. Remove the prevailing torque nut (1) from the pitman arm (3) ball stud. Discard the prevailing torque nut (1).
5. Use the J24319-B in order to remove the connecting rod (1) from the pitman arm (3).
6. Remove the connecting rod from the vehicle.
7. Inspect the ball stud threads for damage.
8. Inspect the ball stud seals for excessive wear.
9. Clean the threads on the ball stud.

Installation Procedure

Notice: Refer to Fastener Notice in Service Precautions.





1. Use the J29193 in order to connect the connecting rod to the pitman arm ball stud. Ensure that the seal is on the stud.
Tighten the J29193 to 54 Nm (40 ft. lbs.) in order to seat the tapers.
2. Remove the J29193.

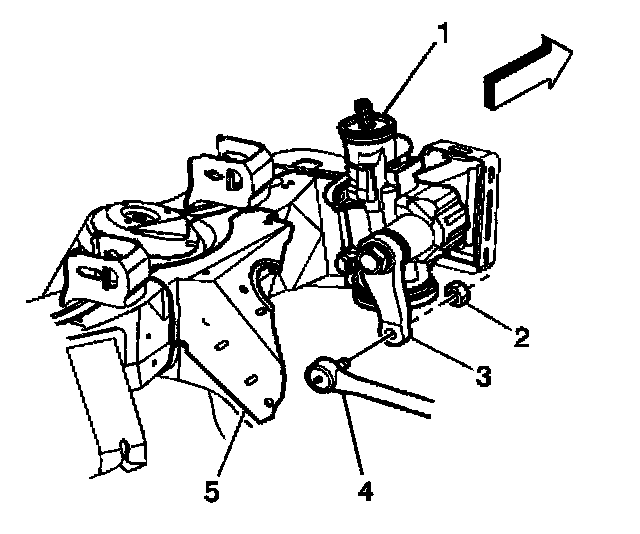

3. Install the new prevailing torque nut (2) to the pitman arm (3) ball stud.
Tighten the nut to 47 Nm (35 ft. lbs.).





4. Use the J29193 in order to install the connecting rod ball stud to the relay rod (4).
Ensure that the seal is on the stud.
Tighten the J29193 to 54 Nm (40 ft. lbs.) in order to seat the tapers.
5. Remove the J29193.
6. Install the new prevailing torque nut (3) to the ball stud.
Tighten the nut to 47 Nm (35 ft. lbs.).
7. Install the grease fitting, if equipped. Grease the steering linkage.
8. Remove the safety stands. Lower the vehicle.
9. Check the wheel alignment. Refer to Measuring Wheel Alignment in Wheel Alignment.
