Charging System Test

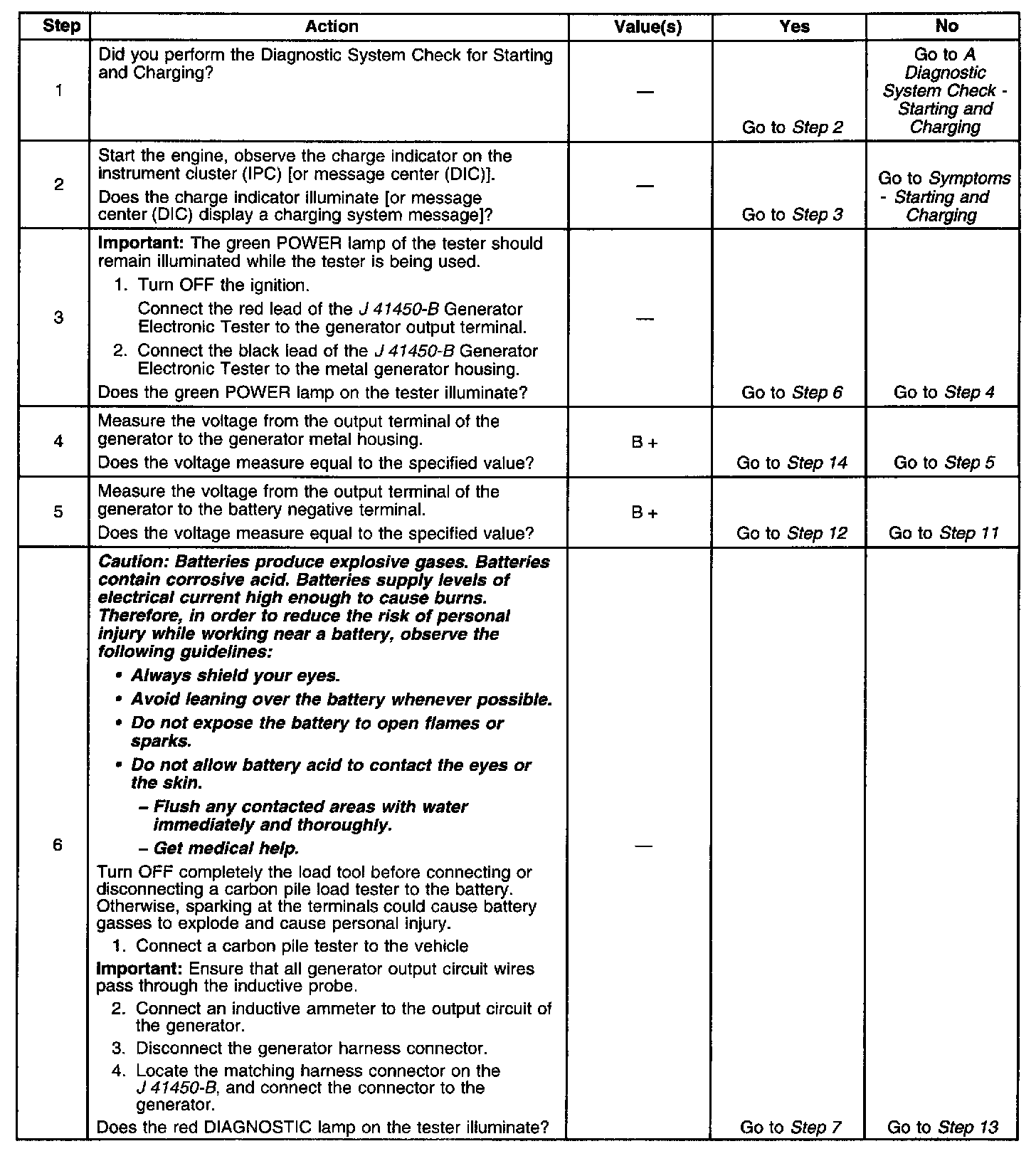

TEST DESCRIPTIONStep 1 - 6:

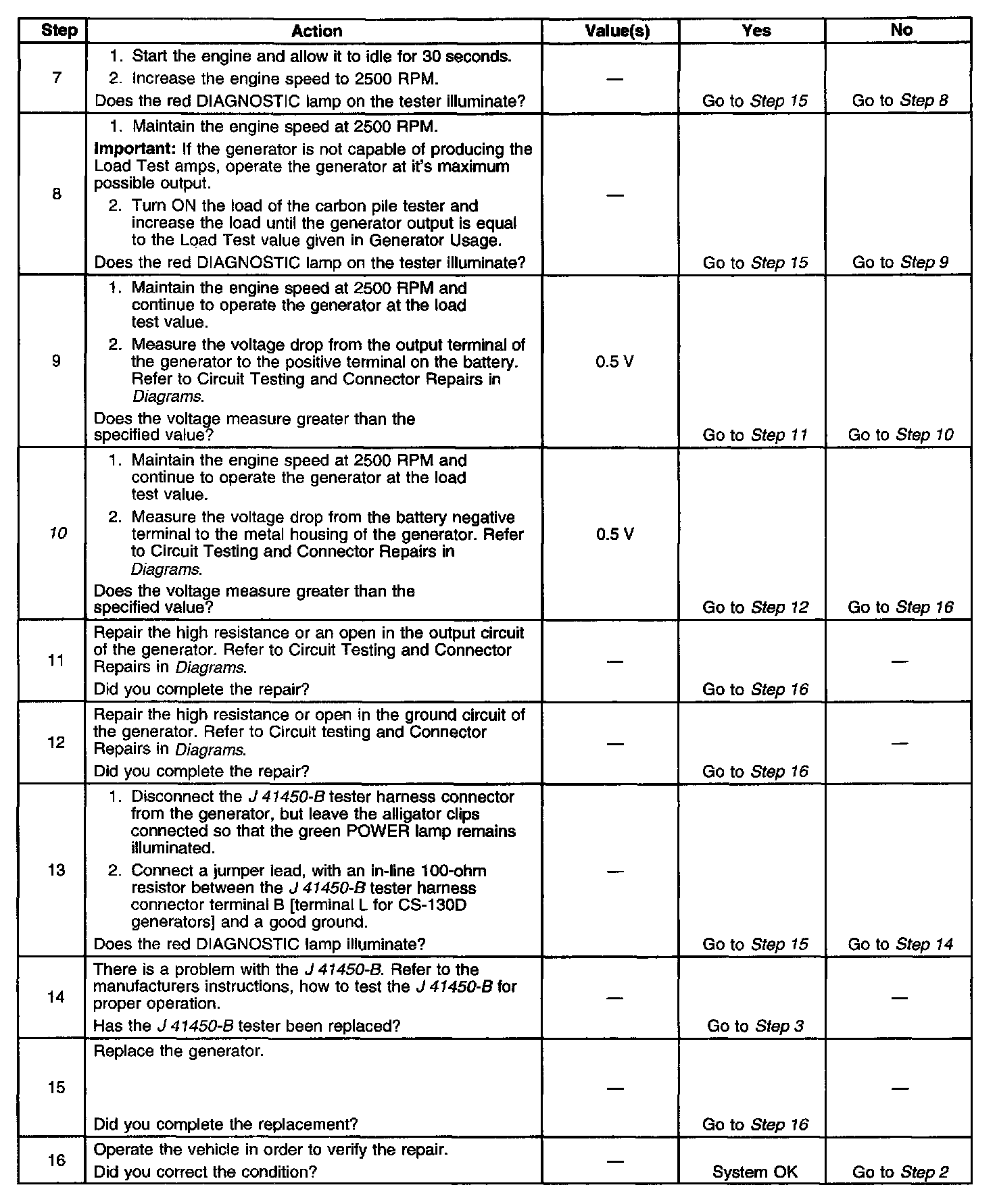

Step 7 - 16:
10. If the test has shown the generator to be OK, however the condition remains, test the [PCM/VCM] or its control circuit(s) to the generator.
10. If the test has shown the generator to be OK, however the condition remains, test the [PCM/VCM] or its control circuit(s) to the generator.
