C302 (Upfitter Provisions)
C302 (Upfitter Provisions)

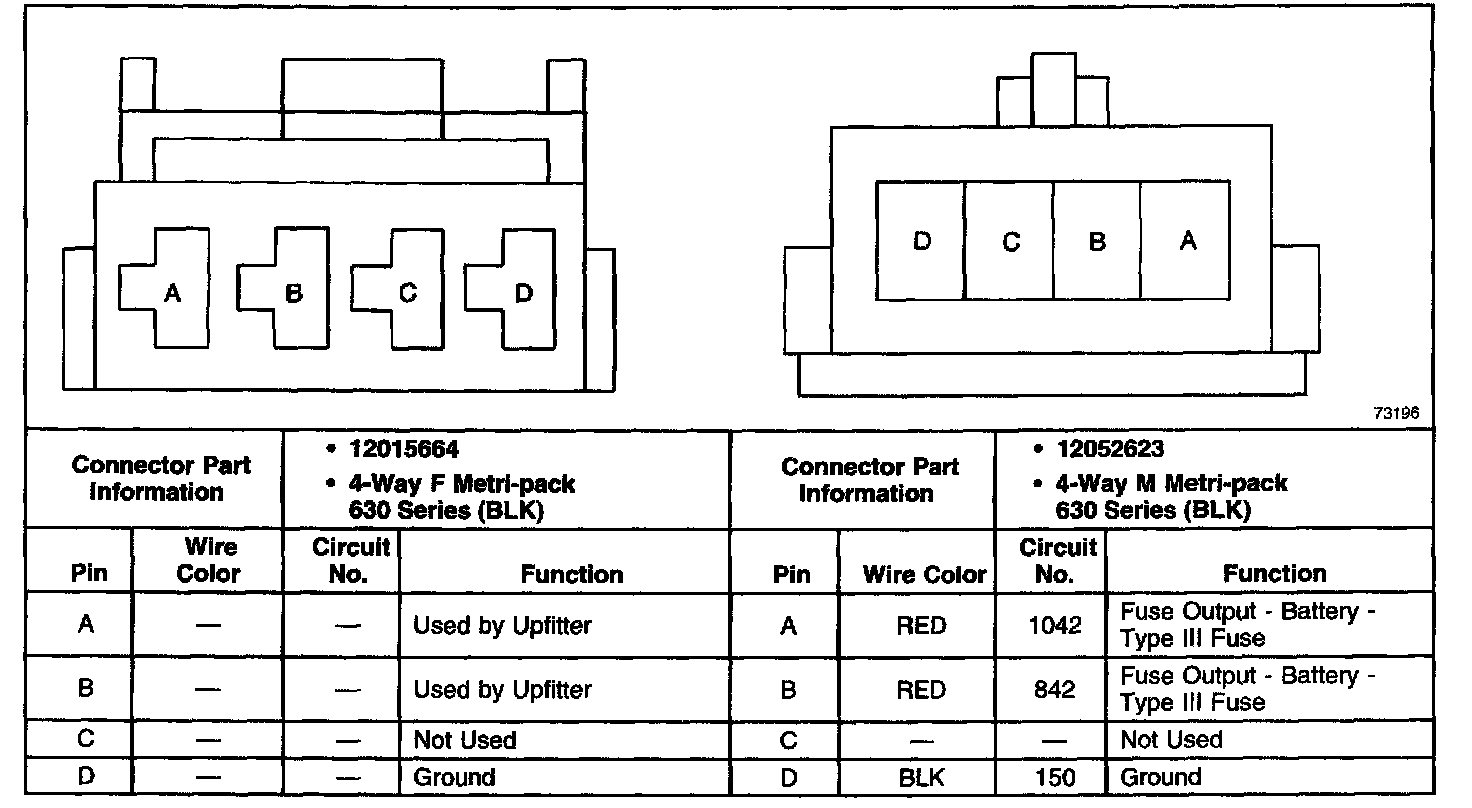

In-Line Harness Connector C302 (Upfitter Provisions):
